BEP, motorized main switch 500Amp 9.5-32 V

Description

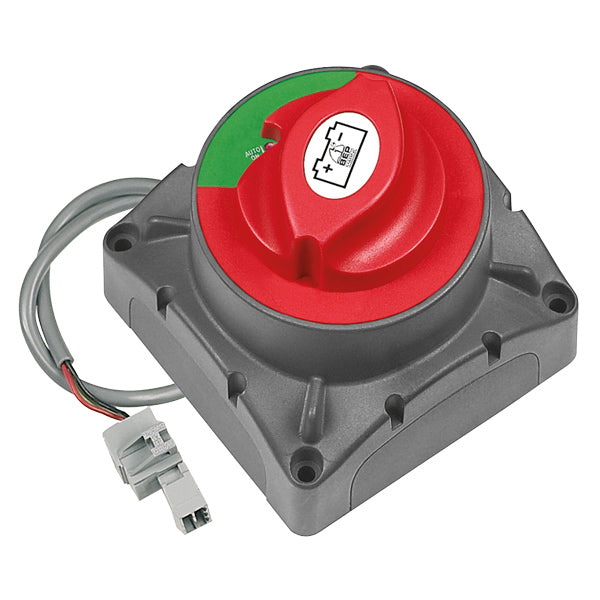

The BEP motorized main switch is designed to control power to your boat. It can be remotely operated and offers efficient installation near the battery bank, saving on cables and fittings.

• Brand: BEP
• Weight: 0.79 kg
• Cable lugs: 2 x12 mm
• Mounting: Surface/rear
• Type: ON/OFF
• Volt: 9.5-32 V
• Product dimensions: 110 mm × 102 mm × 102 mm
• Made in: New Zealand
• Package dimensions: Size: 10.5 cm × 10.5 cm × 12 cm | Gross weight: 0.79 kg

Smart motorized main switch, can be remotely operated with a key, panel, or switch. Placed close to the battery bank, with no voltage drop and saves long, expensive cables and fittings, manual override CE, can be connected to a control lamp.

The test is carried out to determine how much voltage the switch can handle without the terminals overheating, i.e. 100 ˚C above ambient temperature.

Continuous = 500A | Short time = 700A | Surge = 2500A Continuous = 1 hour | Short-time load = 5 min. | Surge load = 10 sec.

Terminals and nuts: tin-plated copper. Spark/ignition protected.
