Blue Sea Systems, waterproof switch Contura DPDT On-Off-On black

Description

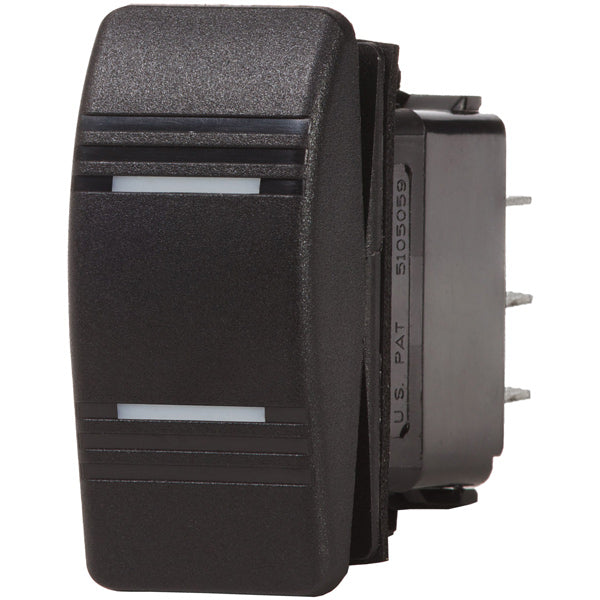

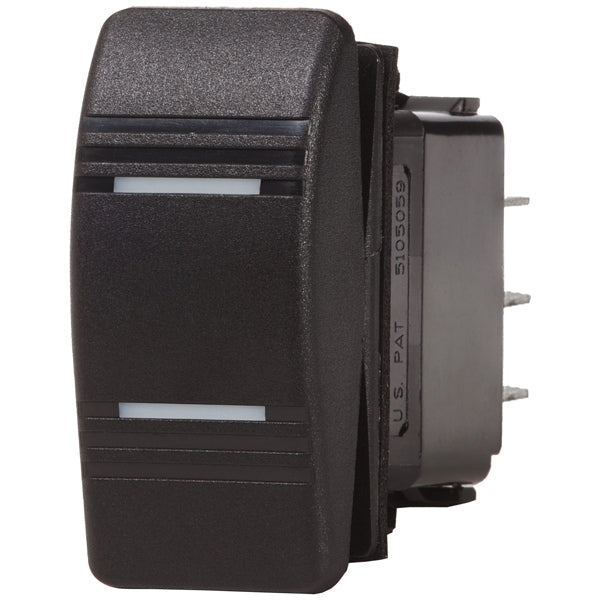

Blue Sea Systems waterproof Contura III DPDT On/off/on switch with 2 LED is designed for marine applications. The switch fits existing Contura electrical panels or can be mounted in the matching loose mounting panels.

• Brand: Blue Sea Systems
• Weight: 0.2 kg
• Number of LED: 2
• Switch function: ON-OFF-ON
• LED: on at ON
• Pole type: DPDT

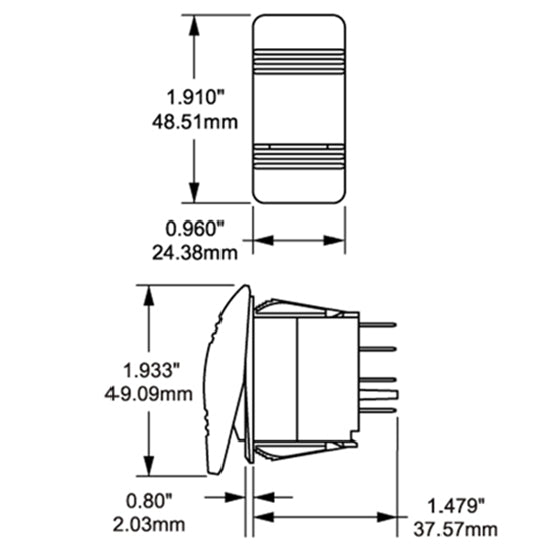

• Package dimensions: Dimensions: 6 cm × 3 cm × 6 cm | Gross weight: 0.2 kg

Switch function (ON) = spring return

Pole types: SPST = single pole and single "throw" SPDT = single pole and double "throw" DPST = double pole and single "throw" DPDT = double pole and double "throw"

Pole refers to the number of circuits controlled by the switch: SP switches control only one electrical circuit. DP switches control two independent circuits (and function as two identical switches that are mechanically linked).

"Throw" refers to the actuator's end position: ST switches close a circuit in only one position. The other position of the lever is off. DT switches close a circuit in the Up position as well as the Down position (On-On). A DT switch can also have a center position (often On-Off-On).
