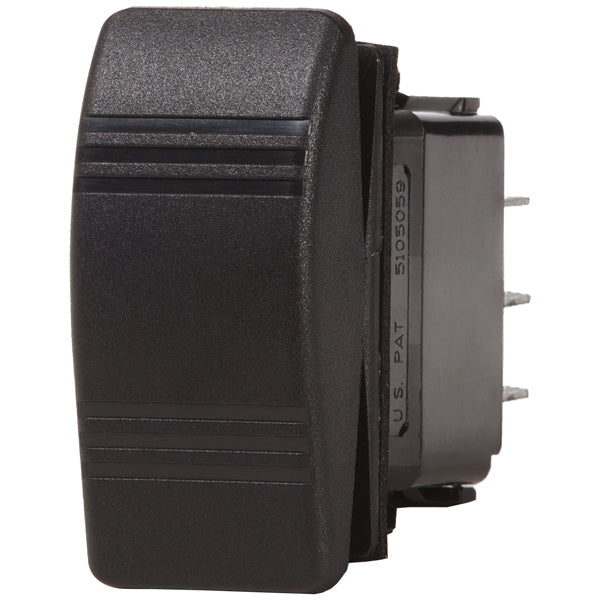

Blue Sea Systems, waterproof switch Contura SPDT On-Off-On

Description

Blue Sea Systems waterproof Contura III SPDT switch is designed to control electrical circuits on boats. It can be used in existing Contura electrical panels or mounted in the matching separate mounting panels.

• Brand: Blue Sea Systems
• Weight: 0.16 kg
• Switch function: (ON)-OFF-(ON)
• Pole type: SPDT
• Package dimensions: Dimensions: 6 cm × 8 cm × 13 cm | Gross weight: 0.16 kg

Switch function (ON) = momentary return spring

Pole types: SPST = single pole and single “throw” SPDT = single pole and double “throw” DPST = double pole and single “throw” DPDT = double pole and double “throw”

“Pole” refers to the number of circuits controlled by the switch: SP switches control only one electrical circuit. DP switches control two independent circuits (and function as two identical switches mechanically linked together).

“Throw” refers to the actuator’s end position: ST switches close a circuit in only one position. The other position of the lever is off. DT switches close a circuit in the Up position as well as the Down position (On-On). A DT switch can also have a center position (often On-Off-On).
