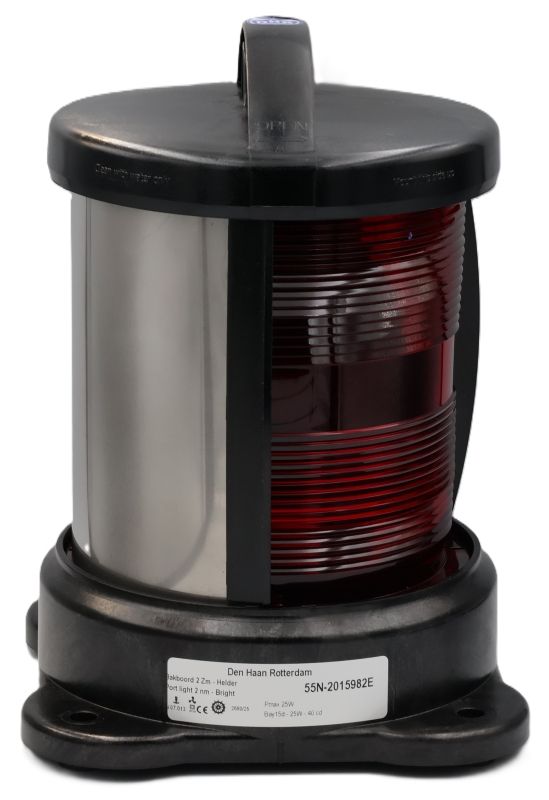

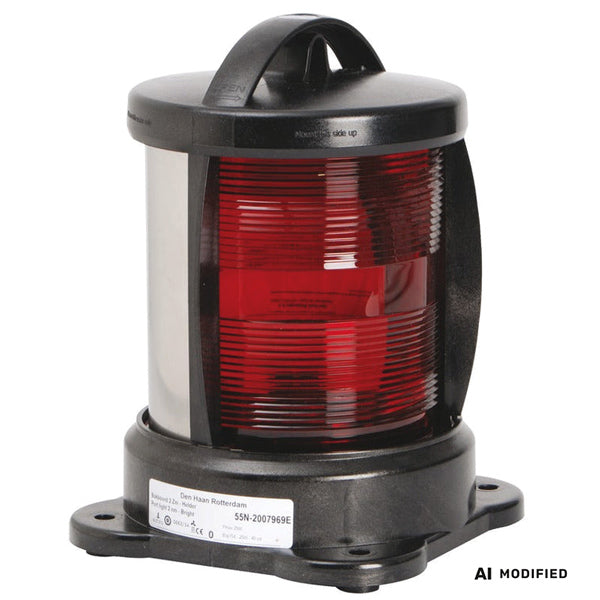

DHR, 55N port lantern 2Nm 12/24V

Description

DHR55N port navigation light is an approved navigation lantern for vessels under 50 meters. It ensures correct signaling and visibility in accordance with maritime requirements and is suitable for both 12 V and 24 V systems.

• Brand: DHR
• Weight: 0.02 kg
• Color: Black
• Socket: BAY15D
• Approval: MED 2014/90/EU Wheelmark
• IP rating: IP56
• Light: Red
• Material: Glass fiber reinforced polycarbonate with Fresnel lens in polycarbonate
• Visibility: 2 NM
• Type: port
• Angle: 112.5 °
• Volt: 12/24 V
• Watt: 25 W
• Package dimensions: Gross weight: 0.02 kg

This navigation light is designed for seagoing vessels under 50 meters as well as larger inland vessels. It ensures correct signaling and visibility in accordance with current maritime requirements.

The housing is made of glass fiber reinforced polycarbonate, which is corrosion-free, seawater-resistant, and non-magnetic. The replaceable Fresnel lens in impact-resistant polycarbonate provides efficient light distribution and stable operation under demanding conditions.

The unit uses a Bay15D bulb and can be connected to both 12 V and 24 V systems.

The low-maintenance design is suitable for commercial vessels, workboats, and larger leisure boats. Cable connection can be routed through the bottom or side, and additional bracket solutions can be used for alternative mounting.

Mount the lantern on a stable surface with the correct orientation in relation to the vessel's navigation lights. Connect the power supply according to applicable installation requirements, and regularly check the lens, seals, and light source.
