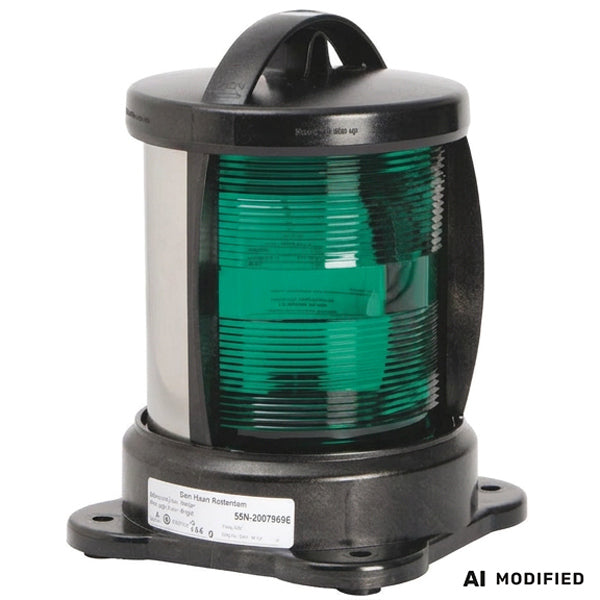

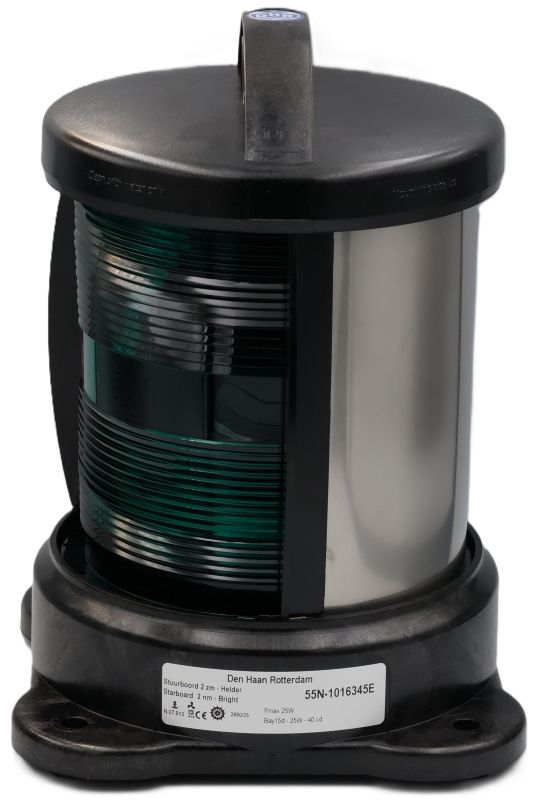

DHR, 55N starboard navigation light 2Nm 12/24V Bay15D

Description

The DHR55N starboard lantern is designed for seagoing vessels under 50 meters and larger inland vessels. It ensures correct signaling and visibility in compliance with applicable maritime requirements.

• Brand: DHR
• Weight: 0.02 kg
• Color: Black
• Socket: BAY15D
• Approval: MED 2014/90/EU Wheelmark
• IP rating: IP56
• Light: Green
• Material: Glass-fiber-reinforced polycarbonate with a polycarbonate Fresnel lens
• Visibility: 2 NM
• Type: starboard
• Angle: 112.5 °
• Volt: 12/24 V
• Watt: 25 W
• Package dimensions: Gross weight: 0.02 kg

This navigation lantern is developed for seagoing vessels under 50 meters as well as larger inland vessels. It ensures correct signaling and visibility in accordance with applicable maritime requirements.

The housing is made of glass-fiber-reinforced polycarbonate, which is corrosion-free, seawater-resistant, and non-magnetic. The replaceable Fresnel lens in impact-resistant polycarbonate provides efficient light distribution and stable operation under demanding conditions.

The unit uses a Bay15D bulb and can be connected to both 12 V and 24 V systems.

The low-maintenance design is suitable for commercial vessels, workboats, and larger pleasure craft. Cable connection can be routed through the bottom or side, and additional bracket solutions can be used for alternative installations.

Mount the lantern on a stable surface with the correct orientation relative to the vessel's navigation lights. Connect the power supply according to applicable installation requirements, and regularly check the lens, gaskets, and light source.
