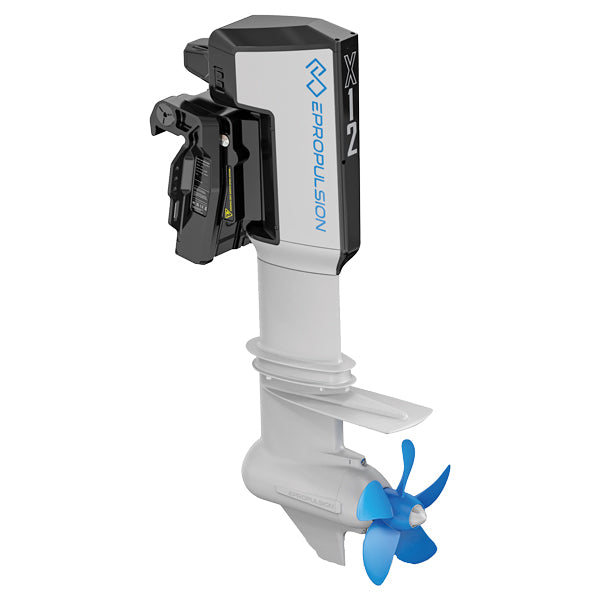

Epropulsion, X-12 outboard motor long shaft

Description

ePropulsion X-12 is an electric outboard motor designed for modern sailors. It offers a powerful and user-friendly solution for boat transport with zero-emission technology.

• Brand: Epropulsion
• Weight: 47.02 kg
• Leg length: 508 mm
• Dimensions (LxWxH): 560 x 266 x 1105 mm
• Input Power: 12 kW
• Cooling system: Natural cooling
• Motor weight: 50 kg
• Rated voltage: 96 V
• Rated rpm: 1100 - 2000
• Steering angle: +/- 45°
• Steering: Integrated electric steering
• Tilt and trim: Power trim/tilt
• Tilt/trim angle: -4 - 61 °
• Package dimensions: Dimensions: 122 cm × 73 cm × 44 cm | Gross weight: 47.02 kg

ePropulsion X-12 – The electric outboard motor of the future for boating enthusiasts ePropulsion X-12 is a groundbreaking electric outboard motor designed for modern sailors who want a powerful, gentle, and user-friendly solution. With an impressive drivetrain efficiency of 88.2%, X-12 sets new standards for electric propulsion on the water. Key features and benefits

Zero-emission technology: X-12 is completely emission-free. Compact and integrated design: The motor has a sleek, space-saving layout that frees up valuable space on the boat. Electric steering: The integrated electric steering eliminates the need for hydraulics and provides precise maneuvering. Advanced driving-assistance features: Smart technology such as digital control, trim, and tilt makes operation intuitive and safe. Modular architecture: Makes installation simple and allows integration with renewable energy sources such as solar panels. Hydrogeneration: Recharge the battery while sailing and use the power from the movement of the water.

Technical specifications

• Input power: 12 kW
• Rated voltage: 96 V DC
• Cooling system: Natural cooling
• Rated RPM: 1100 – 2000
• Steering angle: ±45°
• Tilt and trim: Power trim/tilt with angle from -4° to 61°
• Leg length: 381 mm (short) / 508 mm (long)
• Dimensions (LxWxH): 560 x 266 x 978 mm / 1105 mm
• Motor weight: 48 kg (short leg) / 50 kg (long leg)
• Propeller: 11 13/16” x 10 5/8” (L&R rotation) and 11 7/16” x 14 3/16” (R rotation)

Application and compatibility ePropulsion X-12 is suitable for both light planing boats up to 600 kg and heavier boats up to 6,000 kg. The electric outboard motor delivers performance comparable to a 24 hp gasoline engine – but without noise, vibration, or maintenance requirements.

Why choose ePropulsion X-12?

• Quiet operation: Enjoy nature without engine noise.
• Low maintenance: No oil, fuel, or complex mechanical parts.
• Long service life: Robust construction and quality components.
• Smart connectivity: Compatible with ePropulsion Smart Display and remote control.
• Gentle sailing: Perfect for green harbors and nature-protected areas.

Minimum 1x G102-100 Battery

Propeller: 11 13/16'' x 10 5/8'' propeller (available in left & right rotation) 11 7/16'' x 14 3/16'' propeller (available in right rotation)
