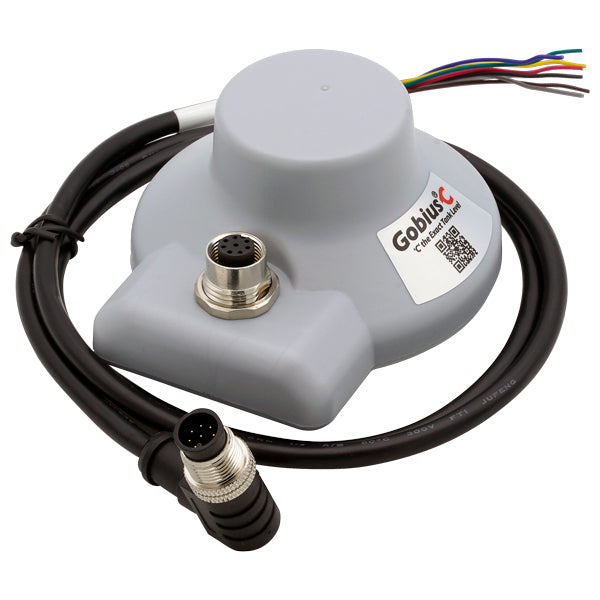

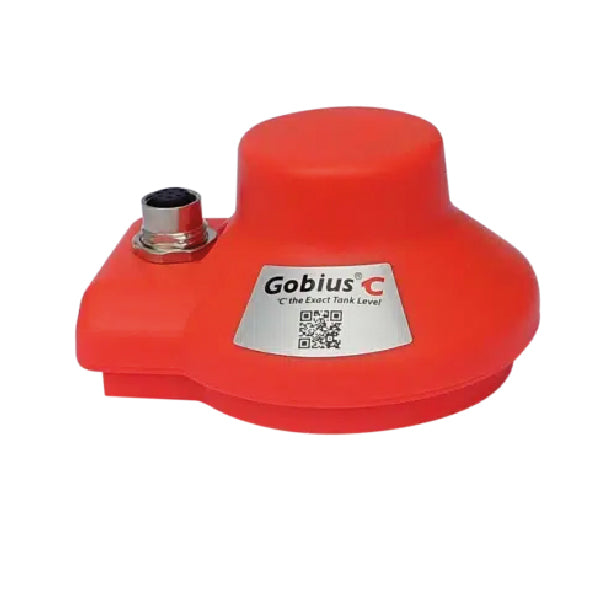

SeaTec, Gobius C Ver 3 analog 12-24 V 95×65 mm

Description

Gobius C is a stepless level gauge that measures tank contents from 0 to 100%. It comes as a complete system with all the equipment needed for installation, which is done easily from your phone via Bluetooth.

• Cable length: 1 m
• Voltage: 12-24 V
• Product weight: 65 g
• Product dimensions: 65 mm × 95 mm
• Made in: Sweden
• Package dimensions: Dimensions: 10 cm × 15 cm × 12 cm | Gross weight: 0.52 kg

It is not necessary to dismantle the tank. Measure from the top, never any risk of leakage. Complete system, everything included; sensor, cable, 3M cleaning wipe and an extra 3M sensor tape.

The sensor is mounted in the same simple way as other Gobius gauges, but on the top side. Max. tank depth is 2 m. It can also be connected to control systems and analog instruments such as KUS, VDO, WEMA, Faria (10-190 Ohm, 240-33 Ohm, 4-20 mA and 0-5 V). In addition, there are two on/off outputs to warn when the tank is empty and full. Installation is done from your phone via Bluetooth. The app is available in Swedish, English, French, Italian, Spanish and German.

All Gobius C support the wireless communication center Victron Cerbo GX.

• Suitable for all types of tanks
• Plug and play installation
• All settings are configured automatically
• Built-in Tank Calculator
• Built-in compensation for wave movement
• It is not necessary to remove the tank
• Measures through plastic, glass and fiberglass tanks
• No limitation on tank wall thickness
• Adapter for metal tanks available for standard holes, (1,25" SAE 5)
• Tank interior maintenance/cleaning is unnecessary
• Measuring range, 20-2000 mm
• Measurement interval, 1 second
• Resolution: 1 mm
• Accuracy: +/- 2-3 mm
