isotherm, freezer system slim fit 200L 12/24 V

Description

Isotherm freezer system is a compact cooling unit designed for sailboats with limited space. It provides stable cooling for cold rooms of around 200 liters and is ideal for installation in cabinets and insulated boxes.

• Brand: isotherm
• Weight: 6.12 kg
• Approval: CE
• Material: Copper, anodized aluminum
• Voltage: 12/24 V
• Made in: Italy
• Packaging dimensions: Dimensions: 32 cm × 39.5 cm × 36.5 cm | Gross weight: 6.12 kg

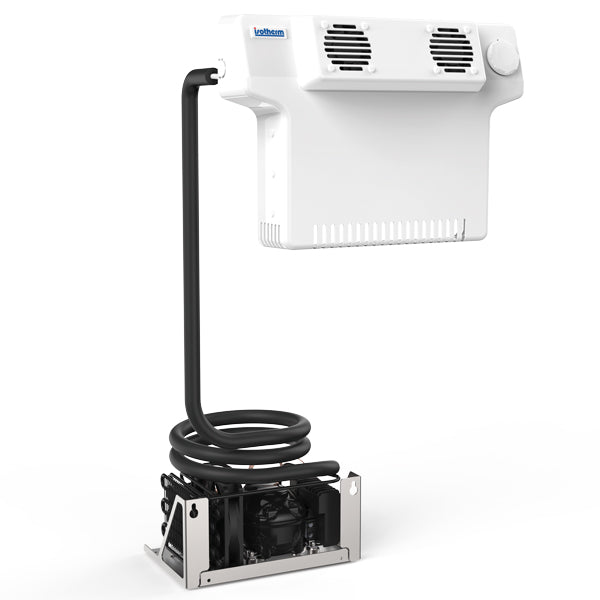

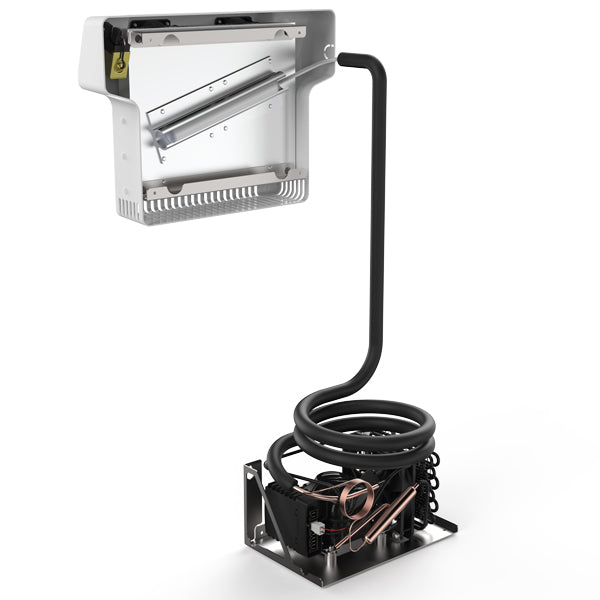

Compact cooling unit developed for sailboats with limited space and a need for stable cooling in smaller cold rooms. Suitable for installation in cabinets and insulated boxes where efficient use of space is essential. The unit is built with a concentric copper evaporator with an anodized aluminum cooling profile and is powered by a Secop BD Nano compressor. Supplied pre-filled with refrigerant, it ensures reliable cooling with low energy consumption. Typically used for cold rooms of around 200 liters, depending on insulation and usage patterns. The evaporator can be mounted directly in the cold room, while the condensing unit is installed separately at a distance of up to 2000 mm. The slim design makes the solution suitable for retrofitting without welding or refrigeration work. Only a small through-hole is required, which reduces installation time and the risk of leaks.

INSTRUCTIONS Disconnect the power supply before installation. Drill a hole of at least 25 mm for the evaporator. Install the evaporator and condensing unit with free ventilation. Connect 12/24 V DC and check the fastening before startup.

• Ventilated evaporator unit: W 375 x H 265 x D 100 mm
• Condensing unit: W 250 x H 162 x D 125 mm
