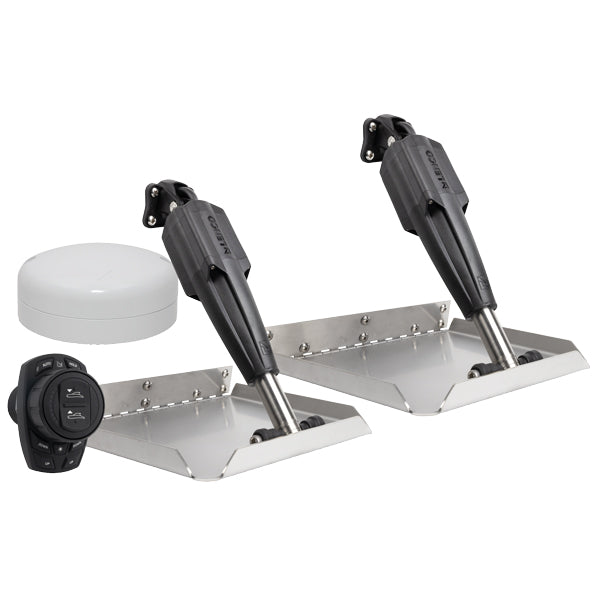

Lenco, 12" x 12" Edge Mount Trim Tab Kit with Pro Control Auto

Description

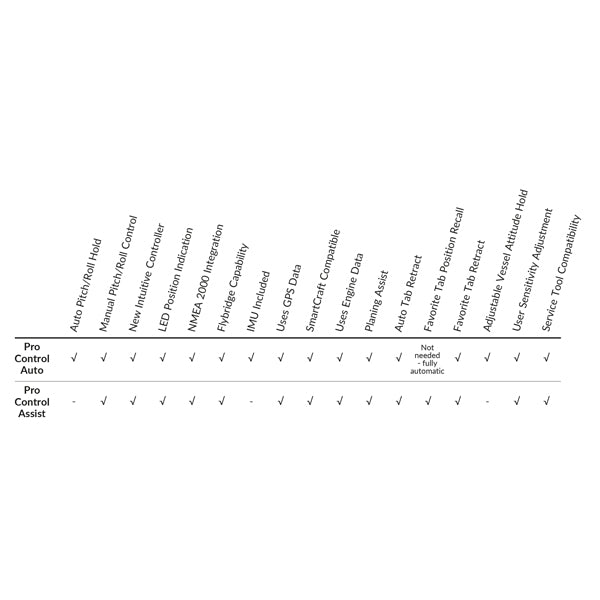

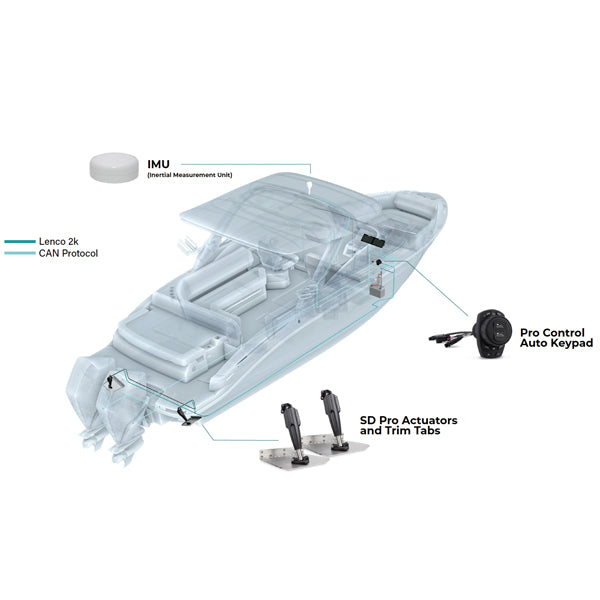

Lenco Edge Mount Trim Tab Kit is designed for boats where a low mounting height is desired. Pro Control Auto delivers auto-leveling for precise control and comfort on the water.

• Brand: Lenco
• Weight: 11.72 kg
• Boat size: 17 - 30 ft

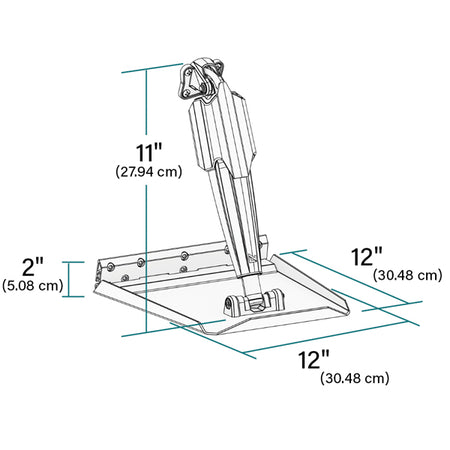

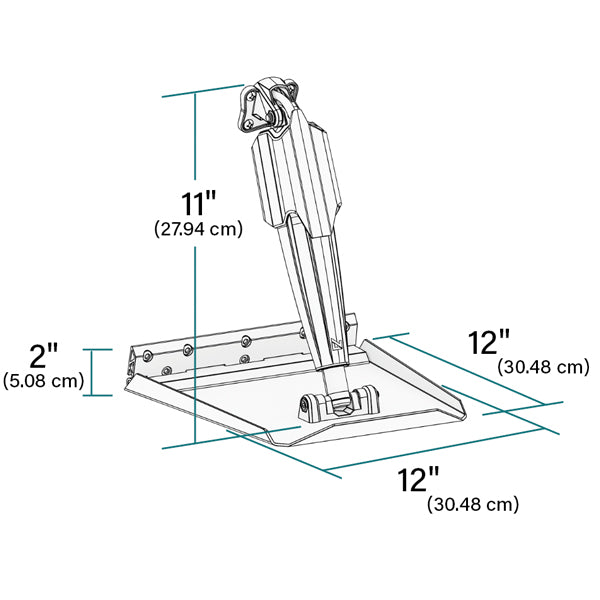

• Dimensions: 12 x 12"
• Hinge height: 5.1 cm
• Min. transom height: 27.9 cm
• Panel: Auto
• Voltage: 12 V
• Packing dimensions: Size: 35 cm × 35 cm × 18 cm | Gross weight: 11.72 kg

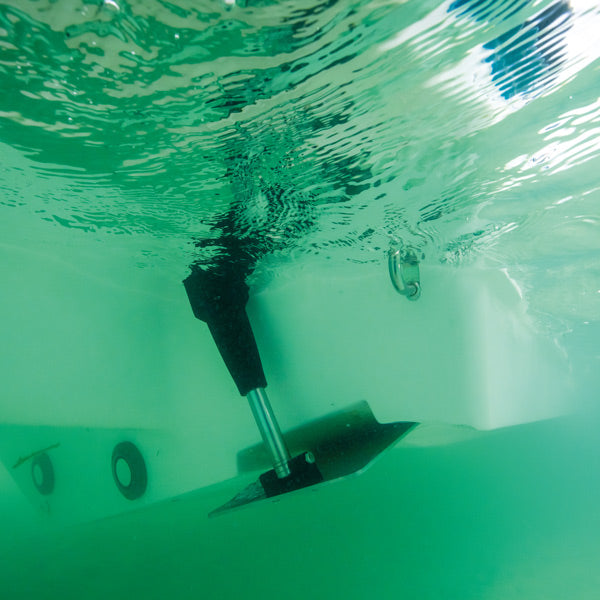

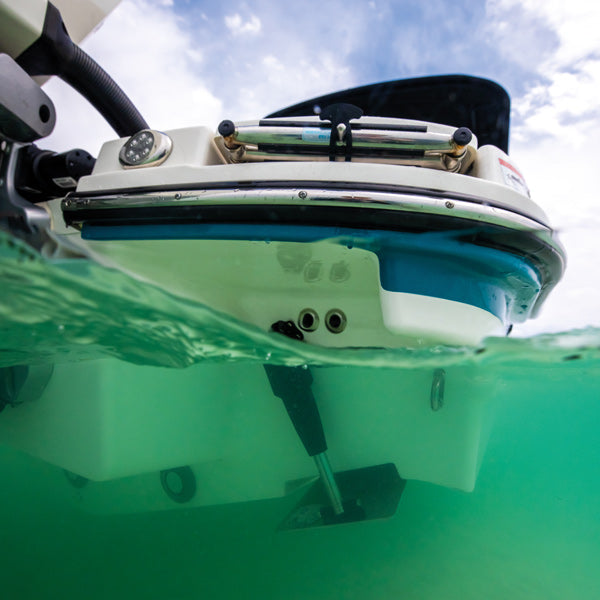

Edge Mount Trim Tabs: Designed for boat applications where a lower actuator mounting height is desired. The actuator is mounted at the trailing edge of the blade, providing a 7.6 cm lower mounting height on 30.5 cm blades. All edges are turned up for added strength and style.

How do you use trim tabs?

In waves, trim tabs are adjusted slightly down by pressing Bow Down on both switches. This brings the bow down while maintaining speed. This adjustment helps the hull absorb the impact of waves, resulting in a more efficient and comfortable ride. In waves, trim tabs should be fully raised by pressing Bow Up on the switches. The trim tabs will help lift the stern so the bow does not dig into the waves.

In side wind, trim tabs are adjusted down on the leeward side by pressing Bow Down on the windward side until the boat is level, which reduces spray and gives a more comfortable ride.

With side weight, trim tabs are adjusted down on the side where the weight is by pressing Bow Down on the weighted side until the boat is level, which reduces spray and gives a more comfortable ride.

For starting, trim tabs are adjusted fully down by pressing Bow Down on both sides. This gives the stern lift and lowers the bow of the boat. When you accelerate, speed increases and you adjust the trim by pressing Bow Up on both switches until the trim feels right.

Safety while the boat is underway: Trim tabs should be used with caution as they have a strong effect on the boat's stability.

Lenco is the leading manufacturer of electric trim tabs. Electric trim tabs are distinguished by easy installation, lower power consumption, and an oil-free design.
