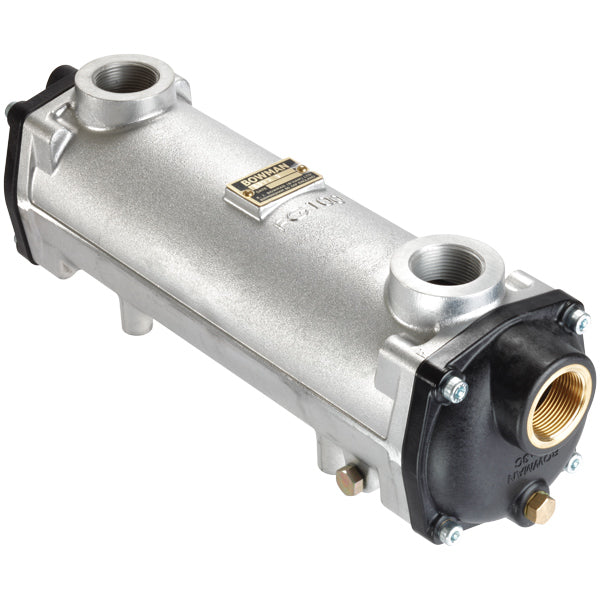

Bowman, Oil cooler Bowman EC 140 3/4" oil water 45mm

Description

Bowman EC series hydraulic oil coolers are designed for efficient heat dissipation in hydraulic systems. They protect oil and components from overheating, extending service life and reducing maintenance.

• Brand: Bowman
• Weight: 4.68 kg
• Power: 16 kW
• Thread: 3/4 "
• Oil vol.: 68 ml
• Water vol.: 50 ml
• Ø: 87 mm
• Outlet: "
• Type: Water inlet 45 mm
• Product dimensions: 444 mm
• Package dimensions: Dimensions: 11 cm × 10 cm × 46.6 cm | Gross weight: 4.68 kg

Bowman EC series hydraulic oil coolers are developed to deliver maximum cooling efficiency in demanding hydraulic systems. When hydraulic oil is exposed to high temperatures, it can lead to oil breakdown and costly repairs. The Bowman EC series is the solution - a compact, water-cooled shell & tube oil cooler that ensures fast and efficient heat dissipation. Made from corrosion-resistant materials such as brass and copper, making it ideal for marine and industrial environments. With high heat transfer efficiency and easy installation, it reduces maintenance costs and extends system life. The Bowman EC series is compatible with a wide range of hydraulic systems and comes with connections that make integration seamless.

• Advantages:
• Robust construction in brass and copper
• High heat transfer efficiency
• Easy installation and maintenance
• Extends the service life of oil and components
• Suitable for marine and industrial applications
