SeaTec, Engine mount 100kg shore55 16mm 50<100 hp.

Description

Phoenix engine mount is designed for marine use to efficiently transfer engine power to the vessel. It reduces vibration and noise, making it suitable for engine installations with 50 to 100 HP.

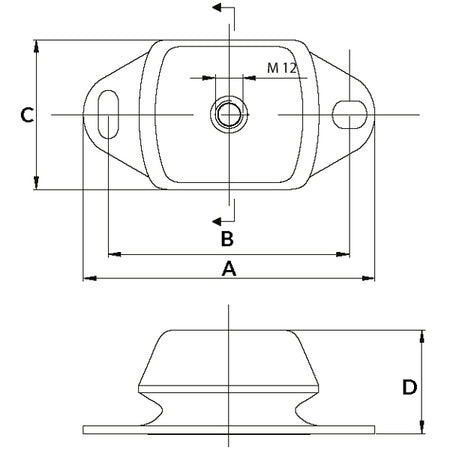

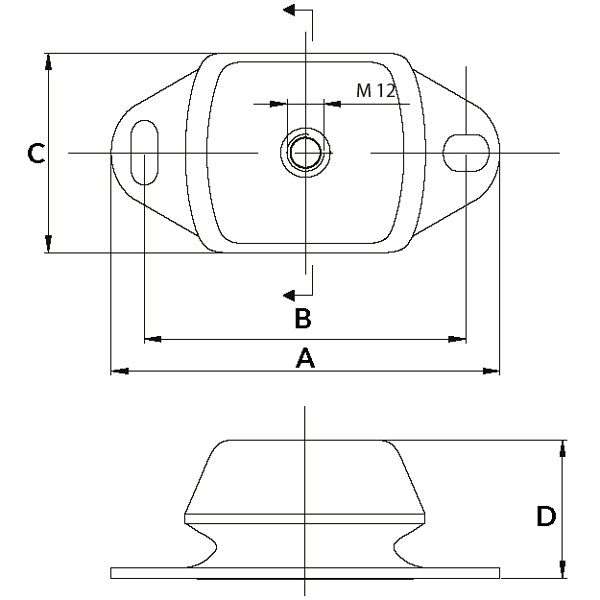

• A: 183 mm
• Vægt: 1.32 kg
• B: 140 mm
• C: 75 mm
• D: 50 mm
• E: M16 mm
• Shore: 55
• Størrelse: 50100 HP.
• Fremstillet i: Netherlands
• Emballagemål: Dimensions: 14 cm × 8 cm × 19 cm | Gross weight: 1.32 kg

To transfer engine power to propel the vessel with as little vibration and noise as possible, you need the right size engine mount. Shore indicates the hardness of the damper. 55 is normally suitable for most engine installations, but there may be situations where you want a softer or harder mount. If necessary, talk to your engine mechanic about which hardness will suit your boat.

Calculate which mount you need: When calculating which mount you need, you should think about where the center point is in the engine installation. It is often the case that you need 2 sets with different hardness. This is the weight of the entire installation including oil and water, and it is better to choose a slightly softer than a too hard mount.

How large a mount should be chosen: Engine 125 kg, 4 legs (125x2): 4 = 62,5 kg So 1510030 should be used

Engine: 50<100 HP. Weight: 100 kg/pc
