Roca, wiper motor W12 12V 90mm

Description

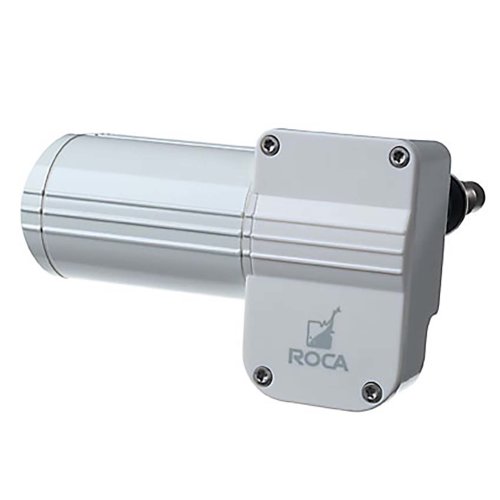

The Roca W12 wiper motor is a waterproof wiper motor designed for boats with a metal chassis. It offers stepless adjustment of the wipe angle from 45˚ to 110˚ and can be easily adjusted after installation.

• Brand: Roca
• Weight: 1.89 kg
• Shaft length: 94 mm
• Shaft Ø: 13.8 mm
• IP rating: IP65
• Material: Aluminium
• Max hull thickness: 68 mm
• Volt: 12 V
• Made in: Sweden
• Package dimensions: Dimensions: 17 cm × 12 cm × 21 cm | Gross weight: 1.89 kg

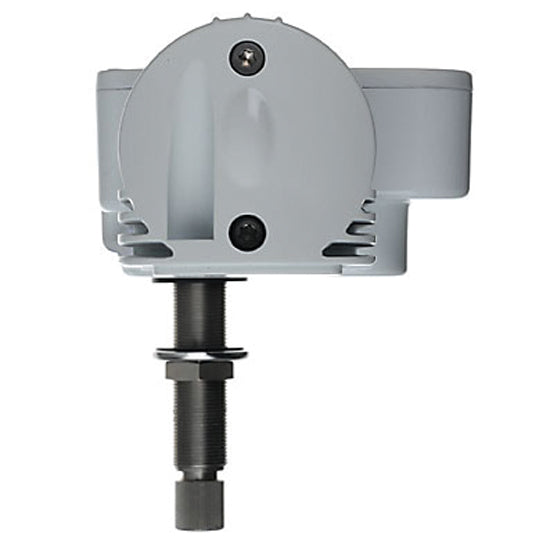

Roca's wiper motor has an insulated chassis, so it can also be used on metal boats. Stepless adjustment of the wipe angle from 45˚ to 110˚ for maximum visibility makes it easy to adapt to your needs and very popular among boat owners. The angle can be easily changed after installation. Adjustable self-parking in right or left position/side. The wiper shaft is made of Ø13.8 mm stainless steel.

2 speeds; slow: 35 strokes/minute, fast: 55 strokes/minute. 100% waterproof, compact housing, made of aluminium. Max length arm/blade combination 610 mm x 560 mm.

Approvals: CE approved: EN55 014 - EMC directive 89/336/EEC. EN60335-1: 94. The product is CE marked in accordance with the low voltage directive 72/23/EEC.
