Ronstan, winch 45 QT Orbit 2-speed

Description

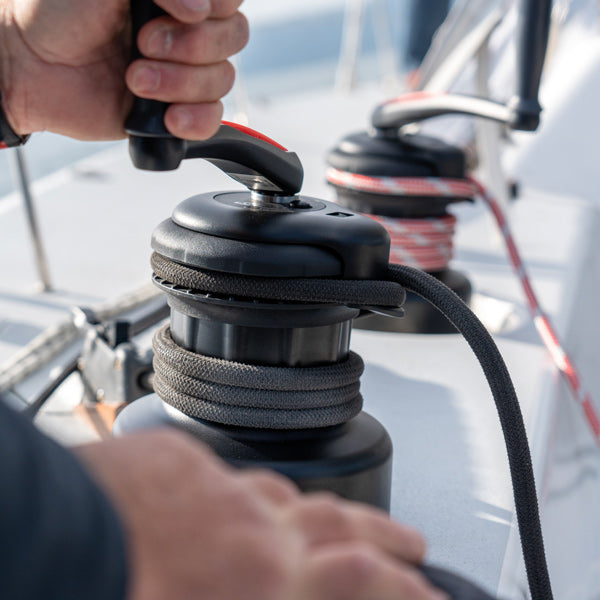

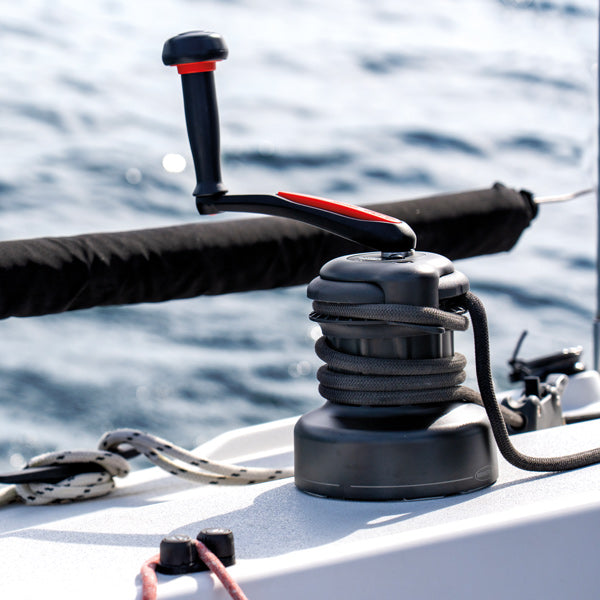

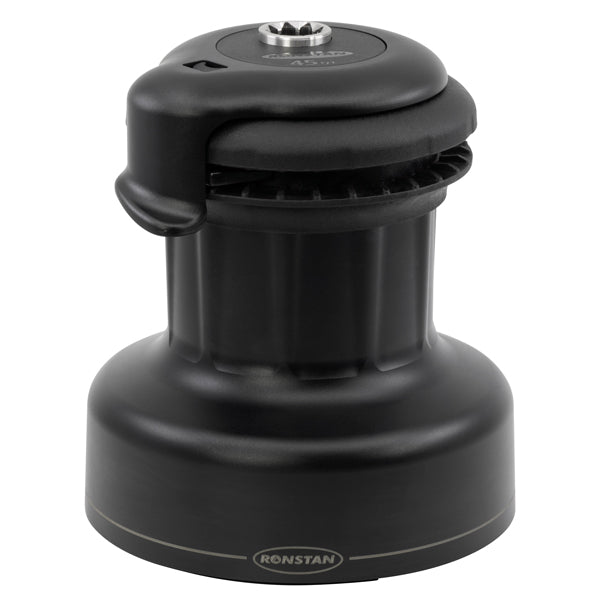

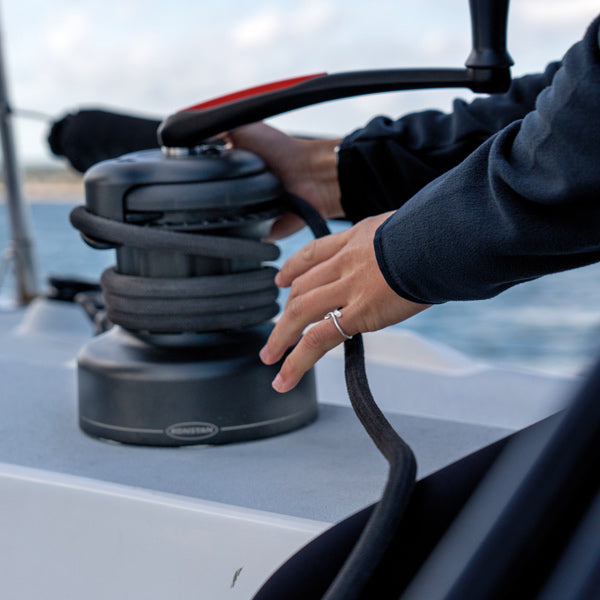

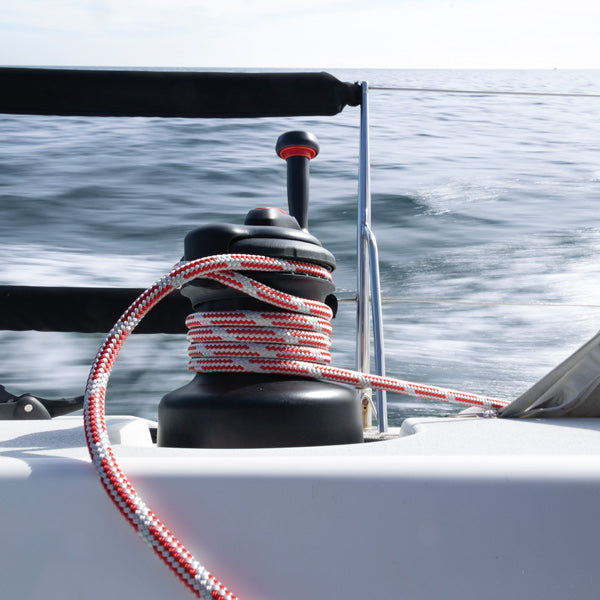

Ronstan 45 QT Orbit 2-speed is a lightweight aluminum winch designed with racing benefits in mind. The winch features a unique QuickTrim self-tailing function that enables fast sail trimming and smooth adjustment.

• Brand: Ronstan
• D: 110 mm
• Power, 1st gear: 13.4 1
• Power, 2nd gear: 45.5 1
• Gear ratio: 10 1
• H: 207 mm
• L: 80 mm
• Max load: 1200 kg
• Rope Ø: 8 - 14 mm
• Product weight: 5.4 kg
• Made in: Denmark
• Package dimensions: Dimensions: 22 cm × 21 cm × 21 cm | Gross weight: 5.3 kg

Ronstan has drawn on Andersen's many years of experience manufacturing stainless steel winches in Denmark. That experience was invaluable and set the standard for reliability, mechanical efficiency, and an unmatched user experience.

• Spring-loaded self-tailing jaws for 8 - 14 mm rope.
• Patented QuickTrim self-tailing function for fast sail trimming and smooth adjustment.
• Ball bearings carry the thrust loads, roller bearings carry the drum's radial loads to minimize rotational friction.
• Proven Andersen winch gear configuration.
• Power Rib ensures a controlled grip on the rope at all times.
• Minimal wear on the rope.
• No tools are required for configuration and service.
• Machined aluminum drum - stronger and lighter than traditional cast aluminum drums.
• Aluminum center shaft, lower weight compared with bronze shaft.
• Low rope entry due to gear configuration geometry.

• Hard anodized aluminum drum and center shaft, aluminum self-tailing arm.
• 316 stainless steel shaft and pawls.
• Aluminum bronze gears.
• Nylon-reinforced self-tailer.
• Self-lubricating shafts and roller bearings.

QUICKTRIM The innovative QuickTrim self-tailer makes it easy and safe to ease rope tension to make small sail trim adjustments without having to remove the winch handle or take the rope out of the self-tailer. Racers can make instant adjustments to small changes in wind direction or steering, giving an unmatched advantage when frequent sail trim adjustments are required. It is also a welcome convenience for cruisers.

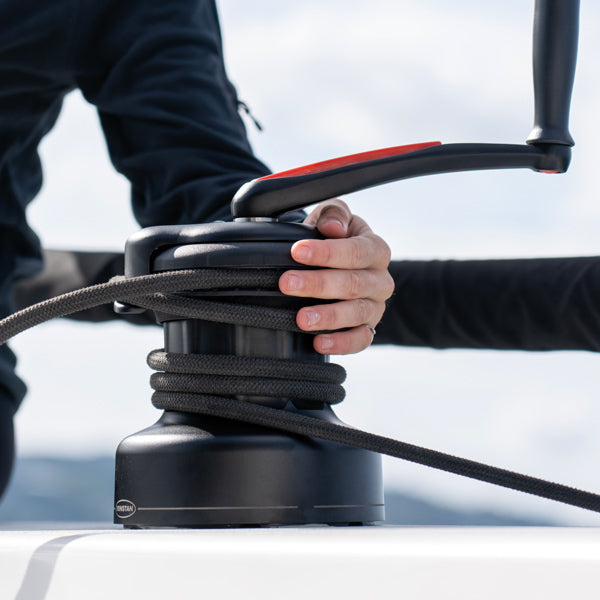

On the water, QuickTrim is intuitive to use. With one hand on the top cover, rotate counterclockwise to ease the grip on the rope so you can make quick adjustments. When you release the top cover, it springs back and grips the rope to resume normal use. This simple, reliable function is a major advantage for frequent, minor trimming.

As delivered from the factory, Orbit 450QT works like traditional two-speed self-tailing winches. The QuickTrim function is easily activated simply by removing a single screw located under the self-tailer cover. Step-by-step instructions are included in the supplied Quick Reference Guide, which comes with the winch and in the product manual.

COMPLETELY TOOL-FREE Full disassembly and reassembly can be carried out completely without tools. To remove the drum, pull back the spring-loaded release pawl and a slight counterclockwise rotation will allow the self-tailing arm to be lifted off the winch. The drum can then be removed from the winch's center shaft. When reassembling the winch, an audible click confirms that the self-tailing arm is in place on the center shaft.

POWER RIBS:

• Requires fewer wraps around the drum.
• Reduces the load in the self-tailer, and encourages the rope to glide easily upward on the drum to avoid overrides.
• The non-wearing drum surface extends rope life and allows smooth, controlled easing, even under high loads.
