Ronstan, Series 20 Orbit single block for strap

Description

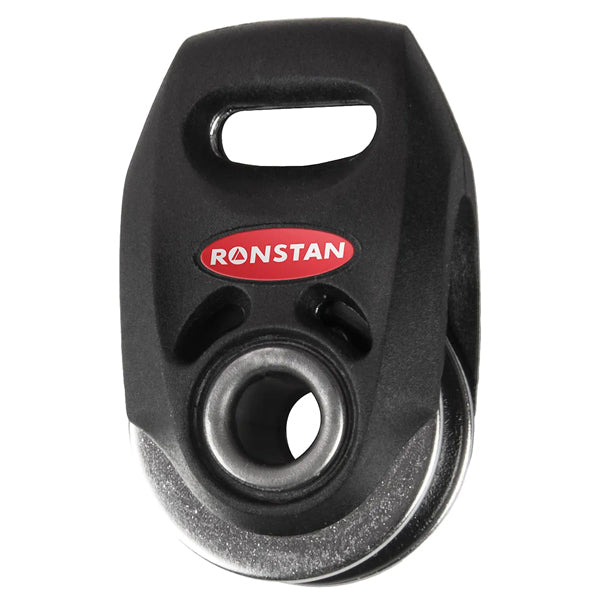

Ronstan Series 20 Orbit single block for strap is a lightweight ball-bearing block designed for small trimming tasks. It ensures stable line handling and smooth rotation on smaller boats and is well suited for light trimming applications.

• Brand: Ronstan
• Working load: 200 kg
• Breaking strength: 400 kg
• Sheave diameter: 20 mm
• Rope Ø: max 5 mm
• Product weight: 14 g
• Package dimensions: Gross weight: 0.03 kg

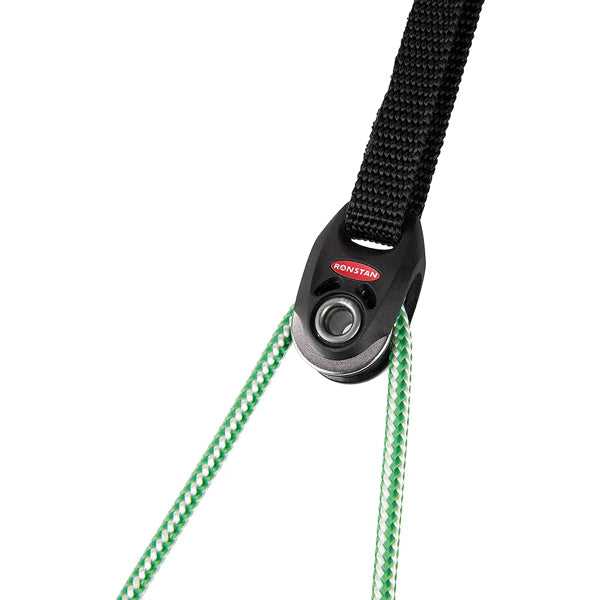

The block provides stable line handling on smaller boats and is used for light trimming functions. It is relevant for sailors who want smooth rotation and compact mounting. It reduces friction and provides secure guidance for the rope. The design has a 2-stage ball-bearing system, ensuring efficient operation under varying loads. The hollow hub makes it possible to connect a strap eye when the trimming task requires it. The materials provide stability and smooth rotation in use. The block is mounted via a strap attachment and fits webbing or Dyneema link up to 10 mm. It can be used in several types of trim setups on dinghies and sports boats. It is suitable for sheet and control lines where low weight and high sensitivity are important. The low weight makes the block easy to position, even where space is limited. It is useful in both training and cruising, where repeated adjustments require reliable operation and low resistance.

INSTRUCTIONS FOR USE Mount the block in the strap fitting. Lead the line through the sheave. Check rotation and fastening before use.
