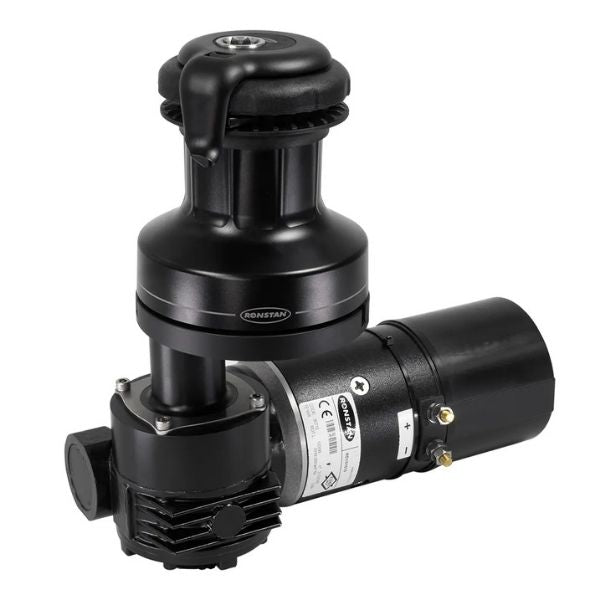

Ronstan, winch 40 QT Orbit 2-speed E1 12V

Description

Ronstan winch 40 QT Orbit 2-speed E1 12V is an electric winch designed to make sailing and sail trimming easier. With the E1 Single Speed electric motor, it provides efficient pulling power and line speed, ideal for use with friends and family.

• Brand: Ronstan
• Rope Ø: 7-12 mm
• Product weight: 15.3 kg
• Made in: Italy
• Package dimensions: Gross weight: 0.08 kg

Engineered with unmatched functionality, monitoring, and protection.

Installation is simple with no need for an external control box, while the "intelligent" button provides multiple safety features, including overload protection, thermal overload protection, accidental start prevention, reverse polarity protection, and more.

At the heart of the system is a high-quality, European-engineered and manufactured series-wound motor, matched with the optimal gearbox for efficient pulling power and line speed.

E1 Electric Winches let you hoist and trim sails of any size at the touch of a button. They remove the need for physical strength, allowing any crew member to control lines and sails easily and safely.

Easy installation: Internal contactors and controller, with no need for a separate control box, mean a more reliable, neater, and easier installation. Simplified electrical installation requires only connecting the positive and negative power cables to the motor terminals and connecting the push button using the included output cable. Marine switches are also available for protection and isolation.

A high-quality, efficient motor: At the heart of the E1 winch is a high-quality, European-engineered and manufactured series-wound motor. Carefully matched with the optimal gearbox, they deliver high speed at low load for fast retrieval and low speed at high load for safe fine trimming. They are available in 12 Volt and 24 Volt models, providing smooth and quiet operation across a wide working load range.

"Intelligent" push button: E1 winches come with a push button featuring an integrated LED that lights up when power to the winch system is on. The push button has a hinged safety cover to prevent accidental winch operation and is waterproof to IP67. The push button also works together with the controller to flash status codes, helping with troubleshooting in the event of overload or when other system protection interventions occur. A cable for connecting the push button is included for easy installation.

Unmatched level of monitoring and protection:

• Integrated overload protection – The controller is preset to stop the winch system if the maximum pull load is exceeded. Operation can resume within seconds once the load returns below the limit.
• Thermal overload protection – The motor is equipped with a thermal cut-out that deactivates the motor in the event of overheating; it resets automatically once the temperature returns to normal.
• Reverse polarity protection – An integrated 5 Amp fuse protects the motor against incorrect cable connection.
• Accidental start protection – Winch operation is disabled if the push button is pressed accidentally while the power supply is switched on at the breaker or battery.
• Low voltage detection – Operation is disabled if the battery charge level is low, preventing further battery discharge and avoiding triggering low-voltage resets on navigation instruments and other electronic devices.
• Continuous operating time limit – Operation is disabled if continuous operating time exceeds 10 minutes.

Available in 12V or 24V versions.
