Rutgerson, foot block with lock 40 mm

Description

A single foot block in composite with an integrated jammer for controlled line handling on deck or at the mast base. It is designed for sailors who want to control and secure a line in one combined product, and serves as a fixed turning point for organizing lines.

• Brand: Rutgerson
• Working load: 600 kg
• Breaking strength: 1200 kg

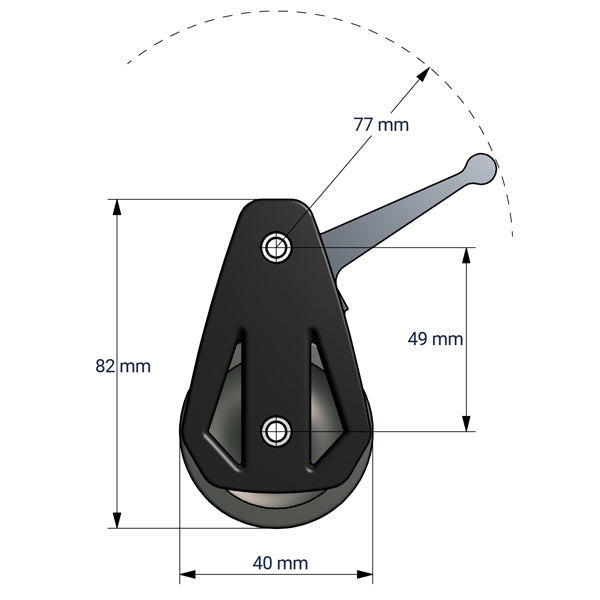

• Hole spacing: 49 mm
• Material: composite
• Sheave diameter: 40 mm
• Rope Ø: 4-12 mm
• Type: 2 × M6 bolts
• Product weight: 126 g
• Product dimensions: 82 mm
• Package dimensions: Gross weight: 0.02 kg

This single foot block with an integrated jammer is used for controlled line handling on deck or at the mast base. It is relevant for sailors who want to control and secure a line in one combined product. The block serves as a fixed turning point, making it easy to keep the line organized when working with halyards, trim lines, or control lines. The foot block is constructed with reinforced composite sides and a composite sheave running on a spherical plain bearing. This provides smooth rotation and low friction under load. The integrated aluminum jammer securely grips the line, so you can quickly secure it without separate fittings. The construction is light, strong, and designed for the marine environment, where durability and reliability are important. The block is stackable, making it possible to mount multiple units on top of each other if your system requires it. The foot block is typically used on deck, at the mast base, or other fixed mounting locations where line handling needs to be combined with a locking function. It is used in halyard systems, small purchase systems, trim functions, and general control systems. The jammer makes it possible to adjust and lock the line with one hand. The product fits common rope diameters and can be used in both cruising and racing setups. The compact shape and low weight make the block easy to integrate into existing installations. The stackable design is practical on boats where deck space is limited. The reinforced composite makes the block durable and almost maintenance-free. The aluminum jammer provides a secure grip, even when the line is wet or loaded.

INSTRUCTIONS FOR USE Preparation: Clean the mounting area and check the line for the correct diameter.

Installation: 1 Fasten the foot block with suitable bolts or fittings. 2 Lead the line through the sheave and make sure it runs freely. 3 Test the jammer's grip under light load.

After use: Rinse the block and jammer in fresh water. Check the sheave and bearing for free running.
