Rutgerson, RAW turtle block 50 mm curved plate

Description

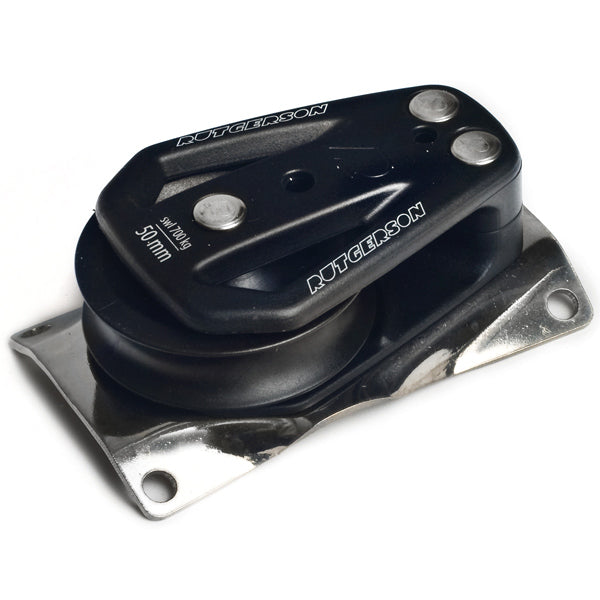

This turtle block with a curved plate is used for line routing on areas of the boat where the surface is curved. It ensures stable directional control and is useful in halyard, trimming and control systems.

• Brand: Rutgerson
• Working load: 700 kg
• Breaking load: 1250 kg
• Sheave diameter: 50 mm
• Rope Ø: 4-12 mm
• Product weight: 133 g
• Product dimensions: 45 mm × 79 mm
• Packaging dimensions: Gross weight: 0.02 kg

This turtle block with a curved plate is used for line routing on areas of the boat where the surface is curved. It is ideal when you want to keep the line close to the mast, boom or other curved structures. The block provides stable directional control and is useful in halyard, trimming and control systems. The block is built with a plain bearing, which ensures smooth rotation under load. The sides and sheave are made of composite that resists wear and saltwater. The curved plate follows the shape of small to medium curves, so the installation sits securely and minimizes twisting. The design provides a fixed installation with low friction. The block is used as a fixed turning point in the rigging. It is typically mounted at the mast, boom or deck, where the line needs to be redirected or guided. It can be used in reefing systems, hoisting/lowering functions or general line routing. Compatible with common rope diameters and can be used in both cruising and racing setups. The turtle block is especially useful when you want to avoid unnecessary spacers, as the curved plate follows the shape of the boat’s structure. It is lightweight, durable and suitable for both small and medium-sized sailboats. It provides neat and stable line routing that reduces play and ensures easy operation.

INSTRUCTIONS Preparation: Clean the surface and check that the curve radius matches the block’s plate.

Installation: 1 Place the block against the surface so the plate sits evenly. 2 Mark and pre-drill the holes as needed. 3 Secure with suitable stainless steel screws.

After use: Rinse the block in fresh water and check that the sheave rotates freely.
