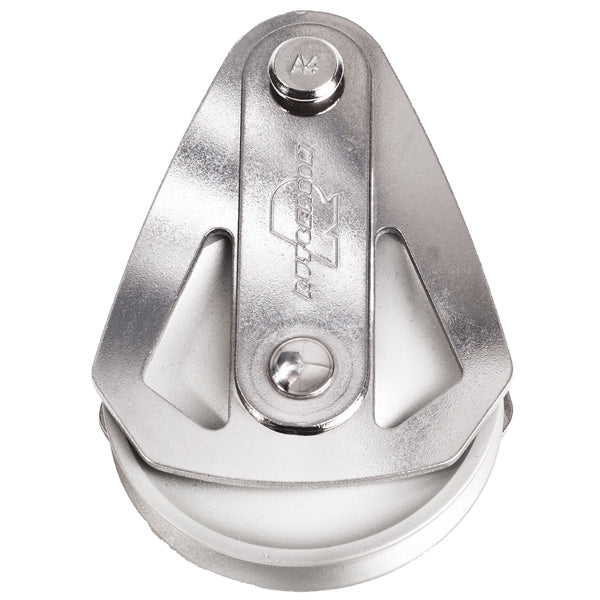

Rutgerson, wire block 100 mm 150 mm

Description

Rutgerson wire block 100 mm is a robust stainless steel block for high loads. It is used to lead or adjust wires safely under heavy loads on board, making it ideal for sailors working with backstays and rig trimming.

• Brand: Rutgerson
• Working load: 4000 kg
• Breaking load: 8000 kg
• Sheave diameter: 100 mm
• Rope Ø: mm
• Product weight: 685 g
• Wire: Ø 10 mm
• Wire Ø: 0 mm
• Product dimensions: 150 mm
• Package dimensions: Gross weight: 0.02 kg

These wire blocks are used in systems where you need to lead or adjust wires safely under heavy load. They are relevant for sailors working with backstays, heavy rig trimming or other functions where wires require a strong and stable turning point. The block provides reliable line guidance and long-term durability. The wire block is made of high-quality stainless steel, making it corrosion-resistant and virtually maintenance-free. It is designed to withstand heavy loads and maintain smooth rotation, even when the wire is tensioned hard. The robust construction is suitable for continuous use in harsh marine environments and ensures long service life. The block is used in wire-related systems such as backstay adjustment, support wires, rig tensioning or other installations where a wire needs to change direction or be kept under tension. It can easily be integrated into existing rig setups and is suitable for cruising, long-distance and racing boats. The wire block is well suited to installations where you want a strong, reliable and maintenance-free block system. It handles high loads without deforming and can be used in setups where both vibration and saltwater are constant factors. It requires minimal servicing and is a good choice for both larger and smaller boats.

Shackle pin Ø for 1310361: 6 mm Shackle pin Ø for 1310362: 8 mm Shackle pin Ø for 1310363: 8 mm Shackle pin Ø for 1310295: 10 mm Shackle pin Ø for 1310364: 14 mm

INSTRUCTIONS FOR USE Preparation: Check the wire diameter and choose the correct mounting point.

Installation: 1 Secure the wire block with a suitable fitting or shackle. 2 Lead the wire through the sheave and check that it runs freely. 3 Tighten gradually and check that the sheave rotates without resistance.

After use: Rinse the block in fresh water if needed. It requires no further maintenance.
