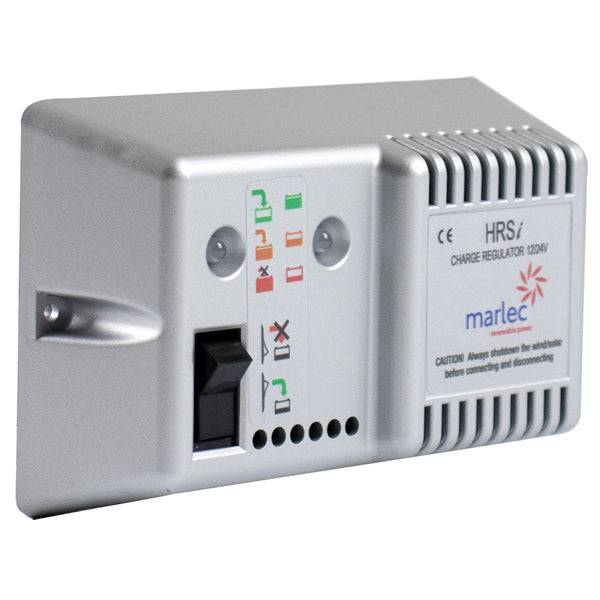

Rutland, HRSi Regulator 12 & 24V 1 wind generator + solar panels up to 160 W

Description

Rutland HRSi Regulator is a compact charge controller for wind generators and solar panels. It enables automatic selection between 12V and 24V, protecting batteries and electronics from overcharging.

• Brand: Rutland
• Capacity: 1 wind generator + solar panels up to 160 W
• Mounting: Wall mount
• Voltage: 12/24 V
• Product weight: 185 g
• Product dimensions: 130 mm × 80 mm × 42 mm
• Made in: United Kingdom
• Package dimensions: Gross weight: 0.21 kg

Compact charge controller for wind generator and solar panels with automatic 12/24 V selection and effective battery protection LONG DESCRIPTION This charge controller is designed for smaller marine energy systems where a wind generator and solar panels work together to charge one battery bank. It ensures stable charging and protects batteries and electronics from overcharging. The controller uses PWM technology with an intelligent microcontroller that monitors battery voltage and continuously regulates the charging output. When the battery approaches full charge, the current is automatically reduced to float charging, extending the life of both the battery and the wind generator. It is intended for use with Rutland wind generators and can also accept input from solar panels up to 160 W. Automatic voltage detection makes it suitable for both 12 V and 24 V systems without manual adjustment. Clear LED indicators show battery status and charging condition, so operation can be monitored quickly. An integrated stop switch makes it easy and safe to disconnect charging during service or installation. INSTRUCTIONS FOR USE Mount the controller in a dry, ventilated place close to the battery. Always connect the battery first for correct voltage selection. Then connect the wind generator and solar panels with correct polarity. Use the stop switch during installation and maintenance.
