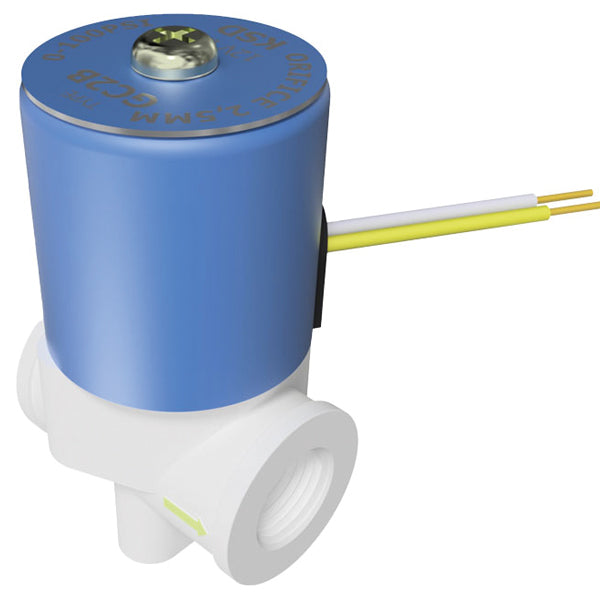

SeaTec, Roca solenoid valve for sprinkler systems 24V 1/4" thread

Description

This solenoid valve is designed for sprinkler systems in marine wiper systems. It provides access to fresh water directly from the boat's water system, making it suitable for boats without the need for a separate sprinkler tank.

• Operating pressure: 8 bar
• Weight: 0.02 kg
• Thread: 1/4 "
• Pressure: 0-120 psi
• Voltage: 24 V
• Package dimensions: Gross weight: 0.02 kg

This solenoid valve is designed for sprinkler systems in marine wiper systems, where access to fresh water directly from the boat's water system is desired. It is suitable for boats where a separate sprinkler tank is not necessary, and contributes to a simple and space-saving installation.

The valve functions as an electrically controlled water valve that is closed in its resting position. When it receives a power signal, it opens and allows water flow to the sprinkler system. The design is developed for stable operation under the conditions typically found on board.

The solution can be integrated into existing water systems and used together with marine windshield wiper systems, where fresh water is used to clean windows. The G1/4 thread makes it possible to use standard components with a matching thread size.
