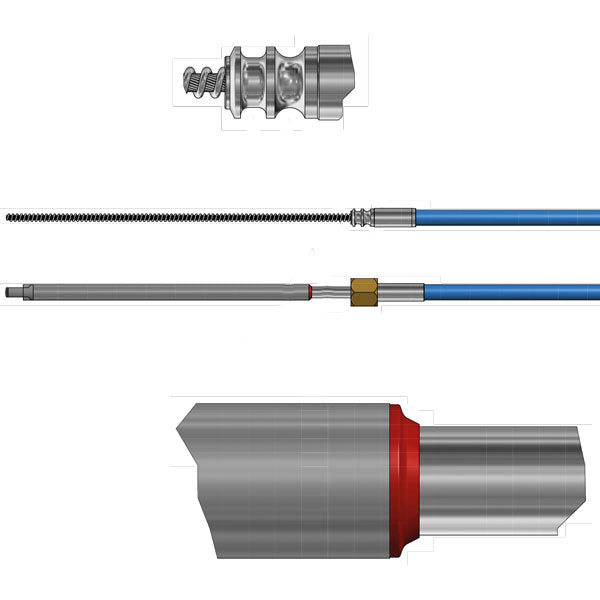

Ultraflex, Steering cable 'mach' M90 18 ft/549 cm

Description

Ultraflex M90 Mach cable is a flexible steering cable designed for boat equipment. It is used to connect the helm to the rudder and ensures easy operation without resistance.

• Brand: Ultraflex
• Weight: 4.3 kg
• Breaking strength: 1200 kg
• Bend: min. 200 mm
• Stroke: 228 mm
• Product dimensions: 18 ft/549 cm
• Made in: Italy
• Package dimensions: Dimensions: 80 cm × 51 cm × 6 cm | Gross weight: 4.3 kg

Ultraflex M90 Mach cable is more flexible and a smooth-running cable with a rubber seal at the steering tube to prevent moisture from entering the cable.

ULTRAFLEX steering cables are made of plastic-coated R/F steel with a steel inner cable and stainless steel push arm. Resistant to ultraviolet light and saltwater. Exceptionally flexible and always smooth-running. Complies with ISO 9000 and EN 29000. Approved by Det Norske Veritas and A.B.Y.C. (American Board and Yacht Council). Also CE approved.

• Eye at end Ø: 10 mm
• Outer cable Ø: 16 mm
• Inner cable Ø: 8 mm

FOR HELMS: Fits all Ultraflex helms except T67

Cable type and length are always printed on the outer cable. The length is in feet (305 mm) and measured from the mounting point in the helm to the end of the push arm halfway extended.

Example A (Fig. 1) Length = A+B+C minus 10 cm for each 90º bend + 30.5 cm for mounting on the engine. Ex.: A = 50 + B = 250 + C = 80 minus 20 cm for 2 pcs. 90º bends = 360 + 30.5 cm = 390.5 cm 390.5 cm : 30.5 = 12.8 ft. Therefore, a 13 ft cable must be chosen

Example B (Fig. 2+3) Length = A+B+C minus 10 cm for each 90º bend. Ex.: A = 50 + B = 250 + C = 80 minus 20 cm for 2 pcs. 90º bends = 360 cm 360 cm: 30.5 = 11.8 ft. Then a 12 ft cable must be chosen
