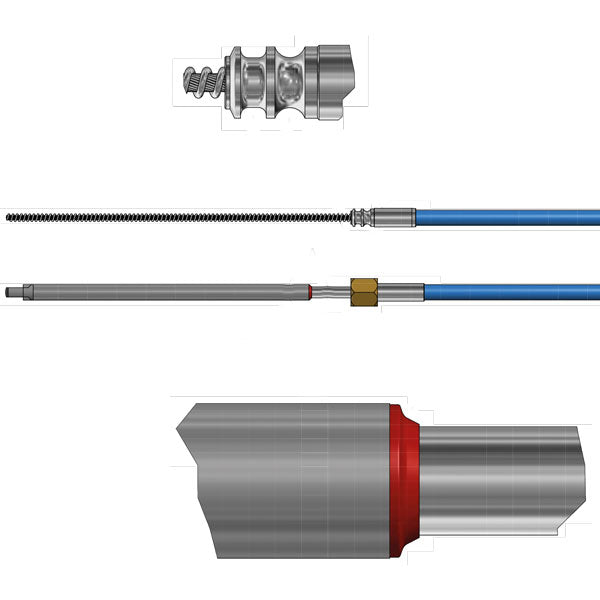

Ultraflex, steering cable 'mach' M90 21 feet

Description

Ultraflex M90 Mach cable is a low-friction steering cable designed for boat equipment. It ensures flexibility and resistance to moisture thanks to the rubber seal at the steering tube. The cable fits all Ultraflex helms except T67.

• Brand: Ultraflex
• Weight: 5.2 kg
• Breaking strength: 1200 kg
• Bending: min. 200 mm
• Stroke: 228 mm
• Product length: 21 feet
• Made in: Italy
• Package dimensions: Dimensions: 6.5 cm × 51 cm × 82 cm | Gross weight: 5.2 kg

Ultraflex M90 Mach cable is more flexible and a low-friction cable with a rubber seal at the steering tube to prevent moisture from entering the cable.

ULTRAFLEX steering cables are made of plastic-coated R/F steel with steel inner cable and stainless steel output arm. Resistant to ultraviolet light and saltwater. Exceptionally flexible and always smooth-running. Complies with ISO 9000 and EN 29000. Approved by Det Norske Veritas and A.B.Y.C. (American Board and Yacht Council). CE approved.

• Eye at end Ø: 10 mm
• Outer cable Ø: 16 mm
• Inner cable Ø: 8 mm

FOR STEERING HELMS: Fits all Ultraflex helms except T67

The cable type and length are always printed on the outer cable. The length is in feet (305 mm) and measured from the attachment point in the helm to the end of the output arm half extended.

Example A (Fig. 1) Length = A+B+C minus 10 cm for each 90º bend + 30.5 cm for mounting on the engine. E.g.: A = 50 + B = 250 + C = 80 minus 20 cm for 2 pcs. 90º bends = 360 + 30.5 cm = 390.5 cm 390.5 cm : 30.5 = 12.8 feet. So a 13-foot cable should be selected

Example B (Fig. 2+3) Length = A+B+C minus 10 cm for each 90º bend. E.g.: A = 50 + B = 250 + C = 80 minus 20 cm for 2 pcs. 90º bends = 360 cm 360 cm: 30.5 = 11.8 feet. So a 12-foot cable should be selected
