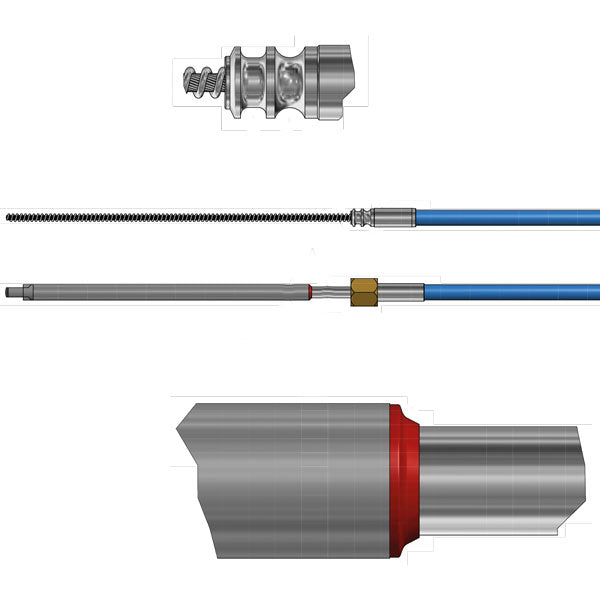

Ultraflex, steering cable "mach" M90 22 ft/672 cm

Description

Ultraflex M90 Mach cable is a flexible and low-friction steering cable designed for boats. It has a rubber seal at the steering tube to prevent moisture from entering the cable, ensuring durable and reliable operation.

• Brand: Ultraflex
• Weight: 5.2 kg
• Breaking strength: 1200 kg
• Bending: min. 200 mm
• Stroke: 228 mm
• Product dimensions: 22 ft/672 cm
• Made in: Italy
• Package dimensions: Size: 6.5 cm × 51 cm × 82 cm | Gross weight: 5.2 kg

Ultraflex M90 Mach cable is more flexible and a low-friction cable with a rubber seal at the steering tube to prevent moisture in the cable.

ULTRAFLEX steering cables are made of plastic-coated R/F steel with a steel inner cable and stainless steel push arm. Resistant to ultraviolet light and saltwater. Exceptionally flexible and always smooth-running. Meets ISO 9000 and EN 29000. Approved by Det Norske Veritas and A.B.Y.C. (American Board and Yacht Council). Also CE approved.

• Eye at end Ø: 10 mm
• Outer cable Ø: 16 mm
• Inner cable Ø: 8 mm

FOR STEERING HELM UNITS: Fits all Ultraflex units except T67

Cable type and length are always printed on the outer cable. The length is in feet (305 mm) and measured from the attachment point in the steering helm to the end of the push arm half extended.

Example A (Fig. 1) Length = A+B+C minus 10 cm for each 90º bend + 30.5 cm for mounting on the engine. Example: A = 50 + B = 250 + C = 80 minus 20 cm for 2 pcs. 90º bends = 360 + 30.5 cm = 390.5 cm 390.5 cm : 30.5 = 12.8 ft. So a 13 ft cable should be chosen

Example B (Fig. 2+3) Length = A+B+C minus 10 cm for each 90º bend. Example: A = 50 + B = 250 + C = 80 minus 20 cm for 2 pcs. 90º bends = 360 cm 360 cm: 30.5 = 11.8 ft. So a 12 ft cable should be chosen
