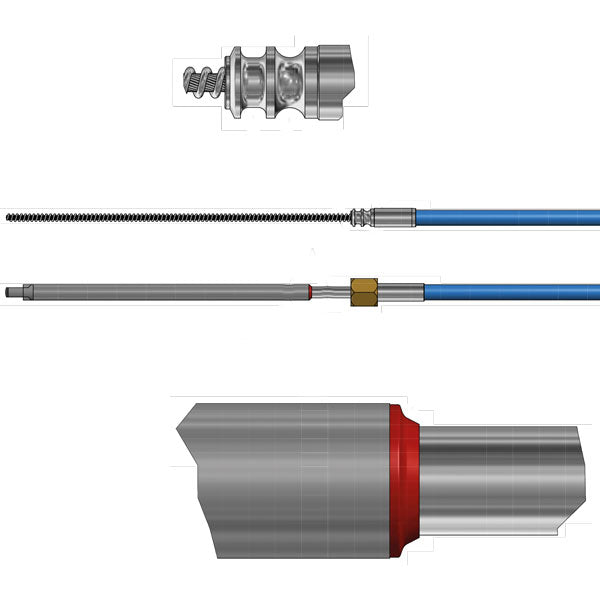

Ultraflex, Steering cable mach M90 27 ft/823 cm

Description

Ultraflex M90 Mach steering cable is designed for light and flexible steering of the boat. The cable is suitable for all Ultraflex steering boxes, except T67, and has a length of 27 feet.

• Brand: Ultraflex
• Weight: 5.2 kg
• Breaking strength: 1200 kg
• Bending: min. 200 mm
• Stroke: 228 mm
• Product dimensions: 27 feet/823 cm
• Made in: Italy
• Package dimensions: Dimensions: 6.5 cm × 51 cm × 82 cm | Gross weight: 5.2 kg

Ultraflex M90 Mach cable is more flexible and a low-friction cable with a rubber seal at the steering tube to prevent moisture in the cable.

ULTRAFLEX steering cables are made of plastic-coated R/F steel with steel inner cable and stainless steel push rod. Resistant to ultraviolet light and saltwater. Exceptionally flexible and always smooth-running. Meets ISO 9000 and EN 29000. Approved by Det Norske Veritas and A.B.Y.C. (American Board and Yacht Council). And CE approved.

• Eye at the end Ø: 10 mm
• Outer cable Ø: 16 mm
• Inner cable Ø: 8 mm

FOR STEERING BOXES: Fits all Ultraflex boxes except T67

Cable type and length are always printed on the outer cable. The length is in feet (305 mm) and measured from the mounting point in the steering box to the end of the push rod when half extended.

Example A (Fig. 1) Length = A+B+C minus 10 cm for each 90º bend + 30.5 cm for mounting on the engine. Ex.: A = 50 + B = 250 + C = 80 minus 20 cm for 2 pcs. 90º bends = 360 + 30.5 cm = 390.5 cm 390.5 cm : 30.5 = 12.8 feet. A 13-foot cable should therefore be chosen

Example B (Fig. 2+3) Length = A+B+C minus 10 cm for each 90º bend. Ex.: A = 50 + B = 250 + C = 80 minus 20 cm for 2 pcs. 90º bends = 360 cm 360 cm: 30.5 = 11.8 feet. A 12-foot cable should then be chosen
