TideON, Core 7" chartplotter high brightness
Regular price
€436,95
incl. VAT
SKU: 1106075
In stock (+20 pcs)
Delivery time: 1-3 business days
Shipping: from 13,95 € — exact rate shown in cart
✓Lightning-fast delivery – most orders ship the same day
✓Customer service by phone, chat and email: weekdays 8am-8pm, weekends 10am-4pm
✓14-day right of return for private customers
✓Danish company – online since 2003, CVR 27331939
Description
CORE 7" is a compact and rugged chartplotter for both small and medium-sized boats. It has a bright 7" display with high brightness and delivers fast GNSS positioning as well as flexible installation with NMEA0183 and NMEA2000.
- Brand: TideON
- Weight: 1.52 kg
- IP rating: IPX6
- Screen resolution: 800480 pixels
- Screen size: 7 "
- Package dimensions: Dimensions: 35 cm × 33 cm × 53 cm | Gross weight: 1.52 kg
CORE 7” is a compact and rugged chartplotter for both small and medium-sized boats. It delivers a bright 7” display with high brightness, so you can read charts and data in full sun. The unit combines fast GNSS positioning with simple operation and an intuitive menu layout. The plotter handles GPS, Beidou and Glonass and provides stable positioning - even in areas with weak satellite coverage. NMEA0183 and NMEA2000 make installation flexible, so you can share heading, depth, AIS and GPS data across the boat’s network. The external GPS antenna provides extra precision in the cockpit or with enclosed mounting. CORE 7” comes with a global base map and supports both C-Map Max, Navionics+ and built-in K-Chart 3.0. You can easily expand the chart material via an external SD card. The unit is IPX6 sealed and built for the marine environment with rain, salt and vibration. The chartplotter is suitable as primary navigation on smaller vessels or as a secondary display on larger boats. Use it as a standalone unit or integrate it into your existing NMEA network.

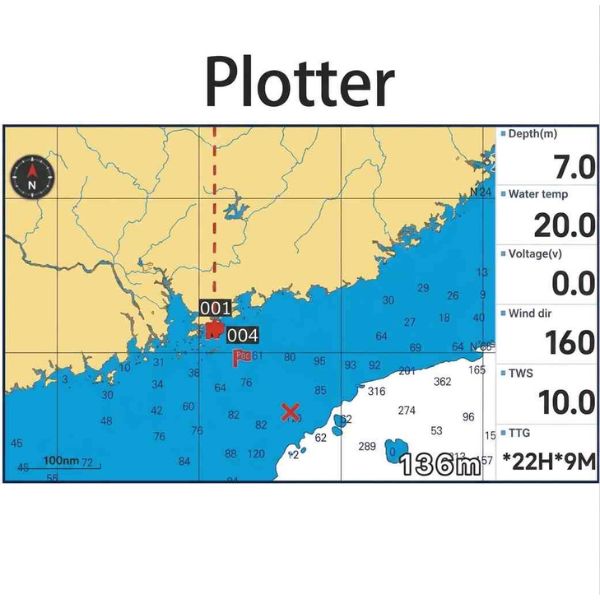

What K-Chart can do:
Basic navigation: Position, heading and route display on chartplotter Waypoints, tracks and routes
Depths & display: Color-coded depths (easy visual reading) Light blue = deeper water Dark blue = shallower water
Overview: Contour lines (depth contours) Coastlines and land Basic geographical data
- In short: everything you need to sail safely from A to B in normal conditions
- LCD brightness: 1000 nit
- GNSS: GPS, Beidou, Glonass
- NMEA interface: NMEA0183 / NMEA2000

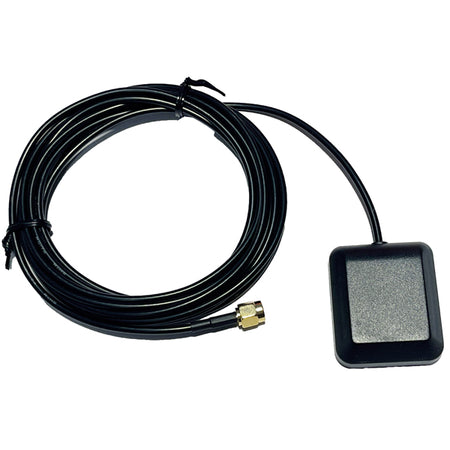

- GPS antenna: External
- Base map: Worldwide - K-Chart 3.0
- External chart: Compatible with C-Map Max, Navionics+
Datablad & Dokumenter
Specifications
| Brand | TideON |
|---|---|
| SKU | 1106075 |
| EAN | 5707400796131 |
| Stock | Yes (20 pcs) |
| Product family | Chart plotter |
| Shipping type | Standard package |
| Skærmstørrelse | 7 " |
| Vægt | 1.52 kg |
| IP-standard | IPX6 |
| Skærmopløsning | 800480 pixel |
| Emballagemål | 35 × 33 × 53 cm |
| LCD-lysstyrke | 1000 nit |
| GNSS | GPS, Beidou, Glonass |
| NMEA-grænseflade | NMEA0183 / NMEA2000 |
