Ultraflex, Cylinder front-mounted model 3

Description

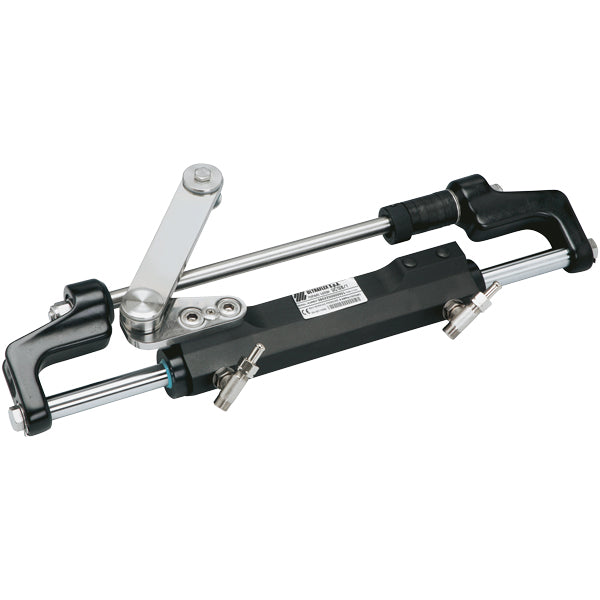

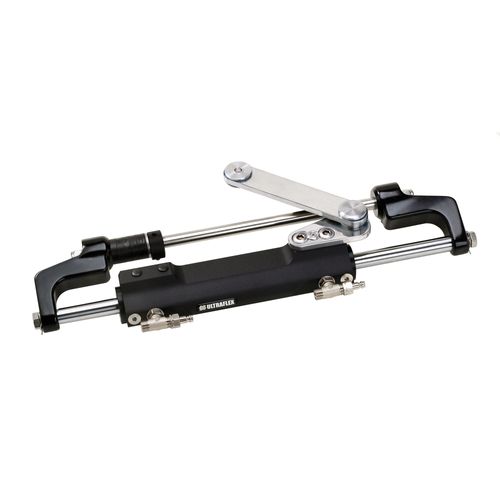

Ultraflex UC128-OBF1 is a heavy-duty hydraulic cylinder for outboard engines up to 300HP. It is designed for precise steering and maximum reliability in demanding marine conditions.

• Brand: Ultraflex
• Weight: 5.57 kg
• HP: Max 300 HP
• Inside Ø: 35 mm
• Stroke: 198 mm
• Hose connection: 9/16-24
• Thrust: 278
• Volume: 128
• Made in: Italy
• Package dimensions: Size: 8 cm × 16 cm × 58 cm | Gross weight: 5.57 kg

Ultraflex UC128-OBF1 is a top-class hydraulic cylinder developed to deliver precise steering and maximum reliability for outboard engines up to 300HP. This cylinder is designed for both leisure and commercial boats, where steering under heavy loads requires a robust and reliable solution.

The cylinder is made of corrosion-resistant aluminum and fitted with heavy-duty bullhorn brackets that ensure a solid and secure installation. It is CE approved and built to withstand the harsh marine environment, providing long service life and stable performance. UC128-OBF1 is compatible with Ultraflex hydraulic pumps and can be integrated into systems with single or dual helm stations.

Benefits:

• High capacity – suitable for engines up to 300HP
• Robust construction in corrosion-resistant aluminum
• CE approved for safety and quality
• Precise steering in demanding conditions
• Easy installation with bullhorn brackets and lock nut
