Ultraflex, Control cable c16 quicksilver standard 16 ft

Description

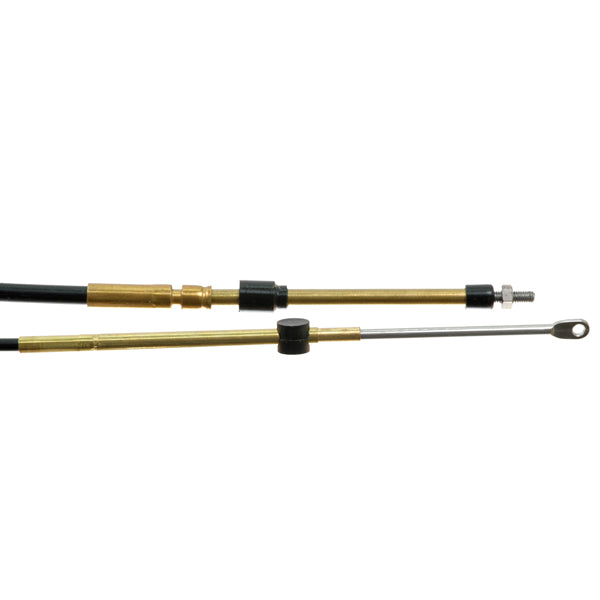

Ultraflex control cable c16 Quicksilver standard is designed to connect Quicksilver control boxes to Yamaha engines. It measures 4.88 meters and offers a robust solution with high flexibility.

• Brand: Ultraflex
• Weight: 1 kg
• Stroke: 80 mm
• Product dimensions: 4.88 m
• Made in: Italy
• Package dimensions: Dimensions: 4 cm × 43.5 cm × 44 cm | Gross weight: 1 kg

From Quicksilver box to Yamaha engine end (standard). Stroke: 80 mm

ULTRAFLEX engine control cables are made of plastic-coated stainless steel. Resistant to UV light, saltwater, and with exceptional flexibility, strength, and smooth operation at all times. Meets all engine manufacturers' requirements and can be adapted to almost all engines using special fittings.

HERE'S HOW TO FIND OUT HOW LONG YOUR CABLE SHOULD BE:

• Measure the distance from the center of your engine to the corner of the boat, line A.
• Then measure the distance from the center of your control box to the boat's corner, line B.
• Then add the two lengths together (A+B), then add 3 feet so the cable is long enough for the engine to have full freedom of movement.
• Gear/throttle cable = total length.
