Ultraflex, Steering Cable M58, 12 ft, Ø10 mm - Ø12.5 mm - Ø6 mm

Description

Ultraflex Steering Cable M58 is a high-quality steering cable designed for various helm boxes such as T67 Ultraflex and Morse®. The cable is made of plastic-coated R/F steel and has exceptional flexibility, ensuring easy operation.

• Brand: Ultraflex
• Length: 12 ft/366 cm
• Weight: 2.52 kg
• Breaking strength: 900 kg
• Bending: min. 200 mm
• Stroke: 230 mm
• Product dimensions: 0 m
• Made in: Italy
• Packaging dimensions: Dimensions: 4.5 cm × 51 cm × 63 cm | Gross weight: 2.52 kg

ULTRAFLEX steering cables are made of plastic-coated R/F steel with steel inner cable and stainless steel actuator arm. Resistant to ultraviolet light and saltwater. Exceptionally flexible and always smooth-running. Meets ISO 9000 and EN 29000. Approved by Det Norske Veritas and A.B.Y.C. (American Board and Yacht Council). Also CE approved.

• Eye at end Ø: 10 mm
• Outer cable Ø: 12,5 mm
• Inner cable Ø: 6 mm

FOR HELM BOXES: T67 Ultraflex, C230/C231 MORSE®, Compac - T®Teleflex®, 805 TX®

Cable type and length are always printed on the outer cable. The length is in feet (305 mm) and measured from the mounting point in the helm box to the end of the actuator arm half extended.

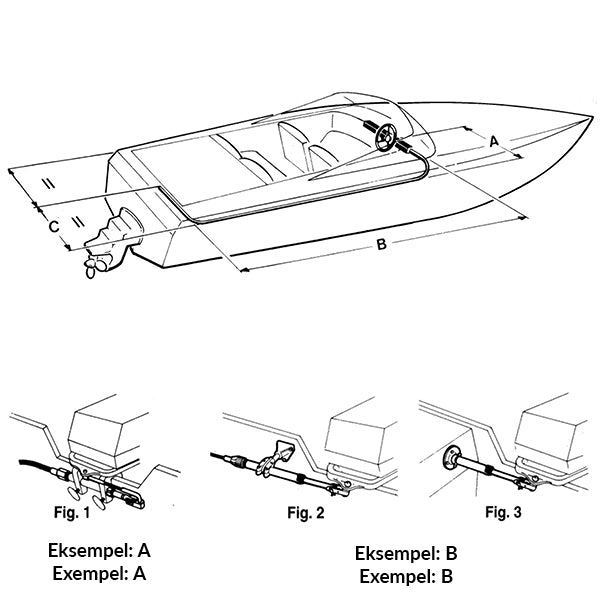

Example A (Fig. 1) Length = A+B+C minus 10 cm for each 90º bend + 30,5 cm for installation on the engine. Ex.: A = 50 + B = 250 + C = 80 minus 20 cm for 2 pcs. 90º bends = 360 + 30,5 cm = 390,5 cm 390,5 cm : 30,5 = 12,8 ft. So a 13 ft cable should be selected

Example B (Fig. 2+3) Length = A+B+C minus 10 cm for each 90º bend. Ex.: A = 50 + B = 250 + C = 80 minus 20 cm for 2 pcs. 90º bends = 360 cm 360 cm: 30,5 = 11,8 ft. So a 12 ft cable should be selected
