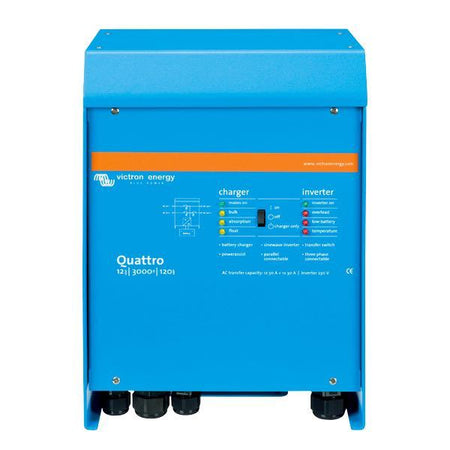

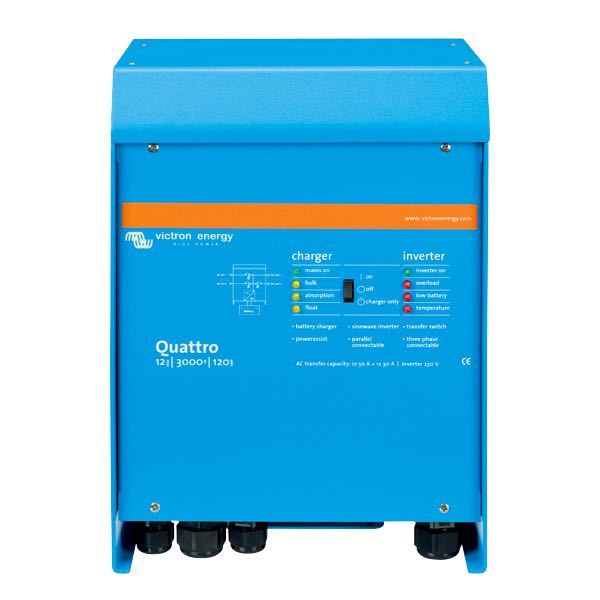

Victron, inverter/charger Quattro 12v 2500w 362 x 258 x 218 mm

Description

Victron Quattro is an advanced inverter and battery charger that combines pure sine wave output and PowerAssist technology. It is ideal for marine, off-grid, and backup solutions, with up to 5000 VA inverter power and a charging capacity of 70A.

• Brand: Victron
• AC input voltage: 187-265VAC-30A
• AC Output: 3000VA/2500W
• AC output voltage: 230 Vac
• AC output waveform: Pure sine wave
• AC peak load: 6000 W
• DC input voltage: 9,5-17V/19-33V
• Efficiency at full load: 93-94%
• No-load consumption: 25 W
• Max charger output: 120 / 70A
• Size: 362 x 258 x 218 mm
• Input cable: DC - M8 bolts
• Volt: 12 V
• Product weight: 18 kg
• Packaging dimensions: Size: 33 cm × 44.5 cm × 29.5 cm | Gross weight: 22.08 kg

Victron Quattro is a professional inverter and battery charger in one unit, designed for demanding installations where reliability and flexibility are essential. With inverter power of up to 5000 VA pure sine wave, the Quattro ensures stable power supply for sensitive electronic equipment. The built-in battery charger has a capacity of 70A, providing fast and efficient charging of the battery bank. One of the Quattro’s greatest strengths is its dual AC inputs, which make it possible to connect both shore power and a generator. The unit automatically switches between the sources and ensures continuous power supply. With PowerAssist technology, the Quattro can supplement limited shore power with battery power, preventing overload and ensuring optimal operation. The Quattro supports parallel and 3-phase operation, making it possible to scale the system for larger installations. It is fully compatible with the Victron VRM Portal, so you can monitor and control the system remotely via the internet or mobile network. The unit is ideal for marine installations, motorhomes, off-grid systems, and backup power solutions.

Technical key points: Inverter power: 5000 VA pure sine wave. Battery charger: 70A with adaptive charging. Voltage: 48V DC system (also available in 12V and 24V variants). AC inputs: 2 (shore power + generator). PowerAssist: Supplements shore power with battery power. Transfer switch: Automatic switching between power sources. Communication: Compatible with Victron VRM Portal. Design: Robust for demanding environments.

Benefits:

• Combined inverter and charger in one unit
• Pure sine wave output for sensitive equipment
• Dual AC inputs for maximum flexibility
• PowerAssist technology for optimal power management
• Scalable solution with parallel and 3-phase operation
• Remote monitoring via Victron VRM Portal
